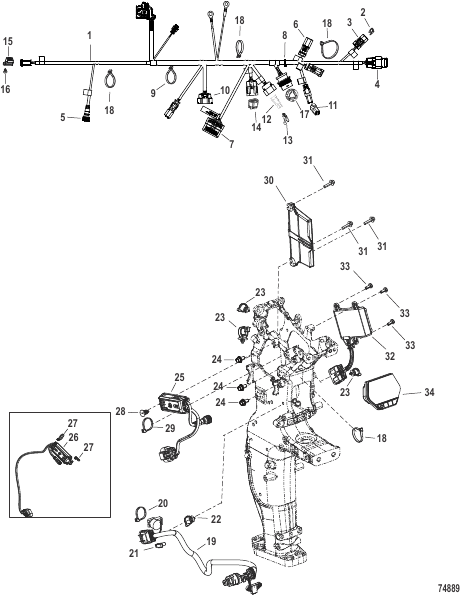

Electrical
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0204496 |
HARNESS Outboard HARNESS Outboard |
1 | |
| 10 | 830796A03 |
СОЕДИНИТЕЛЬ В СБОРЕ Погодозащитный колпачок – 2-контактная вилка CONNECTOR ASSEMBLY Weather Cap - 2 Pin Male |
1 | |
| 11 | 8M0221597 |
WEATHER CAP 6 POS Male DTM WEATHER CAP 6 POS Male DTM |
1 | |
| 12 | 8M0221907 |
CONNECTOR Weather Cap - 10 pin Remote Control Models CONNECTOR Weather Cap - 10 pin Remote Control Models |
1 | |
| 13 | 8M0180030 |
CLIP Connector CLIP Connector |
1 | |
| 14 | 8M0210754 |
WEATHER CAP Remote Control Models WEATHER CAP Remote Control Models |
1 | |
| 15 | 8M0219649 |
DUST CAP 6 POS DT Series Remote Control Models DUST CAP 6 POS DT Series Remote Control Models |
1 | |
| 16 | 8M0204503 |
PLUG PLUG |
1 | |
| 17 | 8M0219650 |
WEATHER CAP Tiller Handle Models WEATHER CAP Tiller Handle Models |
1 | |
| 18 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
4 | |
| 19 | 8M0204389 |
HARNESS Tiller Handle Tiller Handle Models HARNESS Tiller Handle Tiller Handle Models |
1 | |
| 2 | 832969T05 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – коричневый – 5 A FUSE Mini - Tan - 5 Ampere |
1 | |
| 20 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") Tiller Handle Models TIE STRAP (8.00 Inches) Tiller Handle Models |
1 | |
| 21 | 8M0180030 |
CLIP Connector Tiller Handle Models CLIP Connector Tiller Handle Models |
1 | |
| 22 | 8M0161118 |
CLIP Cable Tie Tiller Handle Models CLIP Cable Tie Tiller Handle Models |
1 | |
| 23 | 8M0161118 |
CLIP Cable Tie CLIP Cable Tie |
3 | |
| 24 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
3 | |
| 25 | 8M0173704 |
SC CONNECT Under Cowl, Single Tiller Handle Models SC CONNECT Under Cowl, Single Tiller Handle Models |
1 | |
| 26 | 8M0173694 |
SC CONNECT Under Helm, Single Remote Control Models - Under Helm SC CONNECT Under Helm, Single Remote Control Models - Under Helm |
1 | |
| 27 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") Remote Control Models - Under Helm TIE STRAP (4.00 Inches) Remote Control Models - Under Helm |
2 | |
| 28 | 8M0204503 |
PLUG PLUG |
1 | |
| 29 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 3 | 8M0204388 |
COVER Fuse, 2 Pin Connector COVER Fuse, 2 Pin Connector |
1 | |
| 30 | 8M0220002 |
ELECTRONIC CONTROL MODULE 20e Tiller ELECTRONIC CONTROL MODULE 20e Tiller |
1 | |
| 30 | 8M0220003 |
ELECTRONIC CONTROL MODULE 20e Remote Control ELECTRONIC CONTROL MODULE 20e Remote Control |
1 | |
| 30 | 8M0220004 |
ELECTRONIC CONTROL MODULE 35e Tiller ELECTRONIC CONTROL MODULE 35e Tiller |
1 | |
| 30 | 8M0220005 |
ELECTRONIC CONTROL MODULE 35e Remote Control ELECTRONIC CONTROL MODULE 35e Remote Control |
1 | |
| 31 | 8M0221596 |
SCREW (M4 x 0.7 x 16) Flange HD W/P SCREW (M4 x 0.7 x 16) Flange HD W/P |
3 | |
| 32 | 8M0204398 |
MODULE DC-DC Converter MODULE DC-DC Converter |
1 | |
| 33 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
3 | |
| 34 | 8M0215689 |
DISPLAY LCD, Screen Tiller Handle Models DISPLAY LCD, Screen Tiller Handle Models |
1 | |
| 4 | 8M0055652 |
КОНЦЕВАЯ КАБЕЛЬНАЯ МУФТА В СБОРЕ 10-конт. (CAN P и H) SmartCraft G3 TERMINATOR ASSEMBLY 10 Pin (CAN P and H) SmartCraft G3 |
1 | |
| 5 | 8M0176362 |
CAP Female NMEA2K Remote Control Models CAP Female NMEA2K Remote Control Models |
1 | |
| 6 | 893388A01 |
ПРОБКА Резистор 2 вывода, 120 Ом (CAN 1, 2 и 3) CAN Terminator, Tiller Handle Models - Single Battery With Non-Terminated Power Cable CAP Resistor - 2 Pin, 120 Ohm (CAN 1, 2 and 3) CAN Terminator, Tiller Handle Models - Single Battery With Non-Terminated Power Cable |
1 | |
| 6 | 830796A03 |
СОЕДИНИТЕЛЬ В СБОРЕ Погодозащитный колпачок – 2-контактная вилка Multiple Battery Models and Tiller Handle Models With Internally Terminated Cable CONNECTOR ASSEMBLY Weather Cap - 2 Pin Male Multiple Battery Models and Tiller Handle Models With Internally Terminated Cable |
1 | |
| 7 | 831960 |
КРЫШКА Fuse COVER Fuse |
1 | |
| 8 | 8M0214940 |
TIE STRAP TIE STRAP |
1 | |
| 9 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 |
