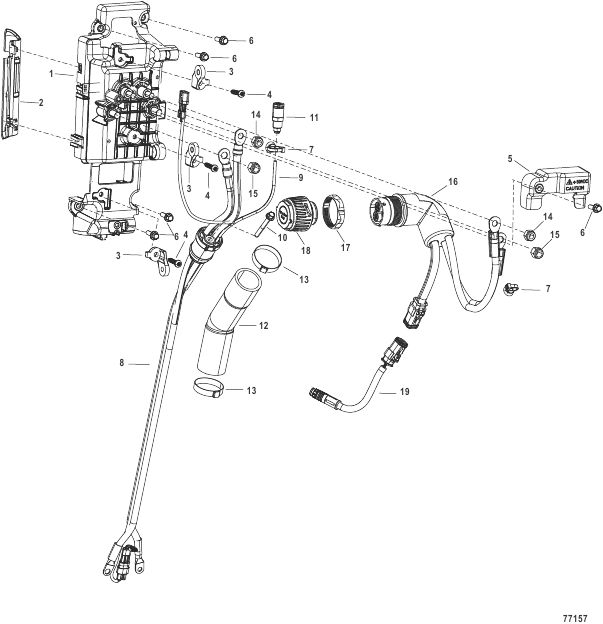

Electrical Power Entry Module
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0204492 |
BRACKET Cowl BRACKET Cowl |
1 | |
| 10 | 88552550 |
ВИНТ (M6 x 50 мм), нержавеющая сталь SCREW (M6 x 50 MM) Stainless Steel |
1 | |
| 11 | 8M0204396 |
HOSE ASSEMBLY Vent Tube Motor Lower Unit Tube HOSE ASSEMBLY Vent Tube Motor Lower Unit Tube |
1 | |
| 12 | 8M0204501 |
HOSE Grommet Motor Lower Unit HOSE Grommet Motor Lower Unit |
1 | |
| 13 | 8M0141781 |
ЗАЖИМ (44) CLAMP (44) |
2 | |
| 14 | 82670910 |
ГАЙКА (0.312-18), нержавеющая сталь NUT (.312-18) Stainless Steel |
2 | |
| 15 | 82670912 |
ГАЙКА (0.375-16), нержавеющая сталь NUT (.375-16) Stainless Steel |
2 | |
| 16 | 8M0210399 |
HARNESS Tiller Cowl Connector Tiller Handle Models HARNESS Tiller Cowl Connector Tiller Handle Models |
1 | |
| 17 | 8M0204508 |
NUT Power Adapter Tiller Handle Models NUT Power Adapter Tiller Handle Models |
1 | |
| 18 | 8M0210410 |
WEATHERCAP Harness, Plug Tiller Handle Models WEATHERCAP Harness, Plug Tiller Handle Models |
1 | |
| 19 | 8M0210403 |
HARNESS ADAPTER 6 pos to xlok Tiller Handle Models HARNESS ADAPTER 6 pos to xlok Tiller Handle Models |
1 | |
| 2 | 8M0221377 |
TROUGH Harness TROUGH Harness |
1 | |
| 3 | 8M0204493 |
BRACKET Support, Cowl BRACKET Support, Cowl |
3 | |
| 4 | 8M0221376 |
SCREW (M6 x 25) SCREW (M6 x 25) |
3 | |
| 5 | 8M0221378 |
COVER Terminal COVER Terminal |
1 | |
| 6 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
5 | |
| 7 | 8M0161118 |
CLIP Cable Tie CLIP Cable Tie |
2 | |
| 8 | 8M0204500 |
HARNESS Motor, Short HARNESS Motor, Short |
1 | |
| 8 | 8M0204499 |
HARNESS Motor, Long HARNESS Motor, Long |
1 | |
| 8 | 8M0204498 |
HARNESS Motor, Xlong HARNESS Motor, Xlong |
1 | |
| 9 | 8M0217226 |
TUBING TUBING |
1 |
