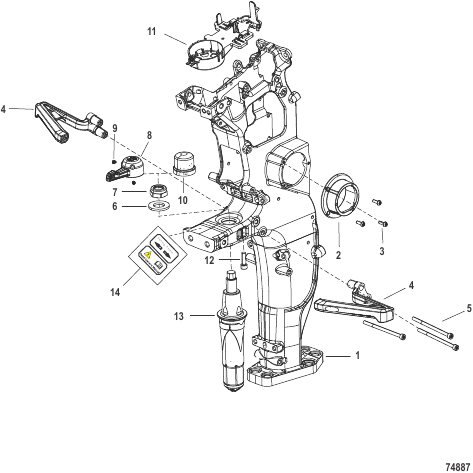

Control Head
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0204491 |
BRACKET Main Support BRACKET Main Support |
1 | |
| 10 | 8M0216011 |
CAP Probe Shaft Remote Control Models CAP Probe Shaft Remote Control Models |
1 | |
| 11 | 8M0204495 |
BRACKET Connector Holder Stowage Carriage Assembly BRACKET Connector Holder Stowage Carriage Assembly |
1 | |
| 12 | 8M0142829 |
ВИНТ (M6 x 20) Steering Stop SCREW (M6 x 20) Steering Stop |
1 | |
| 13 | 8M0221375 |
SWIVEL TUBE ASSEMBLY Probe SWIVEL TUBE ASSEMBLY Probe |
1 | |
| 14 | 8M0214898 |
DECAL SET Instruction Set contains Steering Friction decal (Tiller Handle Models) and Attach Lanyard decal DECAL SET Instruction Set contains Steering Friction decal (Tiller Handle Models) and Attach Lanyard decal |
1 | |
| 2 | 8M0214873 |
BRACKET Power Connector Tiller Handle Models BRACKET Power Connector Tiller Handle Models |
1 | |
| 3 | 8M0221374 |
SCREW (M4 x 12) Truss Head Tiller Handle Models SCREW (M4 x 12) Truss Head Tiller Handle Models |
3 | |
| 4 | 8M0204353 |
HANDLE Lift Support, Port Tiller Handle Models HANDLE Lift Support, Port Tiller Handle Models |
1 | |
| 4 | 8M0204354 |
HANDLE Lift Support, Starboard Tiller Handle Models HANDLE Lift Support, Starboard Tiller Handle Models |
1 | |
| 5 | 8M0204494 |
SCREW M5 x .8 Torx Soc HD CA Tiller Handle Models SCREW M5 x .8 Torx Soc HD CA Tiller Handle Models |
3 | |
| 6 | 4002325 |
ШАЙБА WASHER (17.42 ID x 32 OD. 3.0) |
1 | |
| 7 | 8M0219370 |
LOCKNUT M16 x 2.0 Nylon Insert LOCKNUT M16 x 2.0 Nylon Insert |
1 | |
| 8 | 8M0215999 |
LEVER Probe Shaft Tiller Handle Models LEVER Probe Shaft Tiller Handle Models |
1 | |
| 9 | 8M0216023 |
SET SCREW (M4 x 7 x 6 MM) Tiller Handle Models SET SCREW (M4 x 7 x 6 MM) Tiller Handle Models |
2 |
