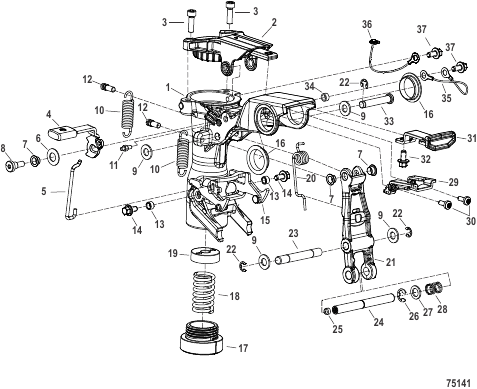

Swivel Bracket — Parts Catalog

Parts (40)

#	Part Number	Description	Qty	Status
-	8M0204424	COMPLETE TRANSOM ASSEMBLY Tiller COMPLETE TRANSOM ASSEMBLY Tiller	1
-	8M0204468	COMPLETE TRANSOM ASSEMBLY Remote Control COMPLETE TRANSOM ASSEMBLY Remote Control	1
1	8M0204457	SWIVEL BRACKET SWIVEL BRACKET	1
10	8M0204467	SPRING Reverse Lock SPRING Reverse Lock	2
11	8M0204442	PIN Reverse Hook Stop PIN Reverse Hook Stop	1
12	8M0204445	PIN Reverse Hook Spring PIN Reverse Hook Spring	2
13	8M0204462	SPACER Reverse Hook SPACER Reverse Hook	2
14	8M0177539	SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD	2
15	8M0204458	REVERSE HOOK ASSEMBLY REVERSE HOOK ASSEMBLY	1
16	8M0204473	BUSHING Tilt Tube Remote Control Models BUSHING Tilt Tube Remote Control Models	1
17	8M0204450	RETAINER SPRING RETAINER SPRING	1
18	8M0204465	SPRING Lift Assist SPRING Lift Assist	1
19	8M0204455	SPRING CUP Lift Assist SPRING CUP Lift Assist	1
2	8M0204459	QUICK RELEASE ASSEMBLY QUICK RELEASE ASSEMBLY	1
20	8M0204447	SPRING TORSION Tilt Bracket SPRING TORSION Tilt Bracket	1
21	8M0220009	BRACKET Tilt BRACKET Tilt	1
22	8M0204451	RETAINING RING RETAINING RING	3
23	8M0204439	PIN Reverse Lock PIN Reverse Lock	1
24	8M0220010	PIN Tilt Position PIN Tilt Position	1	discontinued
25	8M0220013	CAP Tilt Position CAP Tilt Position	1	discontinued
26	8M0204443	RETAINING RING E-Style 9MM- 12 RETAINING RING E-Style 9MM- 12	1
27	37828	ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь WASHER (.390 x .625 x .062) Stainless Steel	1
28	8M0204444	SPRING SPRING	1
29	8M0204466	BRACKET Lock Retainer Tiller Handle Models BRACKET Lock Retainer Tiller Handle Models	1
3	8M0142829	ВИНТ (M6 x 20) SCREW (M6 x 20)	2
30	8M0142918	ВИНТ (M5 x 12) Tiller Handle Models SCREW (M5 x 12) Tiller Handle Models	2
31	8M0204474	BRACKET Probe Lock Tiller Handle Models BRACKET Probe Lock Tiller Handle Models	1
32	8M0103804	ВИНТ (M6 x 12 мм), нержавеющая сталь Tiller Handle Models SCREW (M6 x 12 MM) Stainless Steel Tiller Handle Models	1
33	8M0204437	TILT PIN TILT PIN	1
34	8M0204449	SLEEVE SLEEVE	1
35	8M0214907	CABLE ASSEMBLY Ground, Swivel Bracket to Clamp Bracket CABLE ASSEMBLY Ground, Swivel Bracket to Clamp Bracket	1
36	8M0214908	CABLE ASSEMBLY Ground, Remote Control Models CABLE ASSEMBLY Ground, Remote Control Models	1
37	8M0103804	ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel	1
37	8M0103804	ВИНТ (M6 x 12 мм), нержавеющая сталь Remote Control Models SCREW (M6 x 12 MM) Stainless Steel Remote Control Models	1
4	8M0204441	LEVER ASSEMBLY LEVER ASSEMBLY	1
5	8M0204461	WIRE FORM Reverse Hook WIRE FORM Reverse Hook	1
6	12024	ШАЙБА (0.402 x 0.787 x 0.039, Bellevi) WASHER (.402 x .787 x .039 Bellevi)	1
7	8M0204370	BEARING FLANGE (8 MM x 9 MM) BEARING FLANGE (8 MM x 9 MM)	3
8	8M0204446	BOLT Shoulder BOLT Shoulder	1
9	8M0204690	WASHER (.344 x .688 x .065) Stainless Steel WASHER (.344 x .688 x .065) Stainless Steel	4
