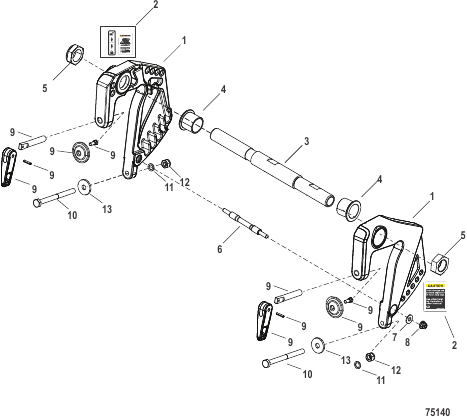

Clamp Brackets Remote Control Models
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0208370 |
TRANSOM HARDWARE KIT Contains anti-theft screw and torx tool TRANSOM HARDWARE KIT Contains anti-theft screw and torx tool |
1 | |
| - | 8M0204468 |
COMPLETE TRANSOM ASSEMBLY Remote Control COMPLETE TRANSOM ASSEMBLY Remote Control |
1 | |
| 1 | 8M0220006 |
CLAMP BRACKET Port CLAMP BRACKET Port |
1 | |
| 1 | 8M0220007 |
CLAMP BRACKET Starboard CLAMP BRACKET Starboard |
1 | |
| 10 | 8M0214889 |
SCREW (M8 x 95) HEX HD CAP SCREW (M8 x 95) HEX HD CAP |
2 | |
| 11 | 8M0204931 |
WASHER (M8 x 12.80 x 1.50) WASHER (M8 x 12.80 x 1.50) |
2 | |
| 12 | 401378 |
ГАЙКА (M8) NUT (M8) |
2 | |
| 13 | 43430 |
ШАЙБА WASHER |
2 | |
| 2 | 8M0215980 |
DECAL SET Transom Set contains Lock/Unlock Trim, Warning Secure Transom and Caution Trailering decals DECAL SET Transom Set contains Lock/Unlock Trim, Warning Secure Transom and Caution Trailering decals |
1 | |
| 3 | 8M0204469 |
TILT TUBE TILT TUBE |
1 | |
| 4 | 8M0204471 |
SPACER SPACER |
2 | |
| 5 | 826164 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | superseded |
| 6 | 8M0204431 |
STUD Transom STUD Transom |
1 | |
| 7 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
2 | |
| 8 | 892233 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 9 | 8M0204426 |
THUMB SCREW ASSEMBLY THUMB SCREW ASSEMBLY |
2 |
