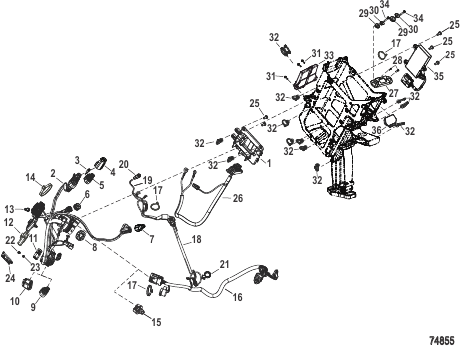

Electrical
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0204403 |
BRACKET Electrical Plate BRACKET Electrical Plate |
1 | |
| 10 | 8M0210754 |
WEATHER CAP Remote Control Models WEATHER CAP Remote Control Models |
1 | |
| 11 | 893388A01 |
ПРОБКА Резистор 2 вывода, 120 Ом (CAN 1, 2 и 3) CAP Resistor - 2 Pin, 120 Ohm (CAN 1, 2 and 3) |
1 | |
| 12 | 831960 |
КРЫШКА COVER |
1 | |
| 13 | 8M0214940 |
TIE STRAP TIE STRAP |
1 | |
| 14 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 15 | 888507T |
ПРОБКА 10-позиц., SmartCraft Remote Control Models CAP 10 Position, SmartCraft Remote Control Models |
1 | |
| 16 | 8M0204389 |
HARNESS Tiller Handle Tiller Handle Models HARNESS Tiller Handle Tiller Handle Models |
1 | |
| 17 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
3 | |
| 18 | 8M0204394 |
HARNESS Motor, Short HARNESS Motor, Short |
1 | |
| 18 | 8M0204393 |
HARNESS Motor, Long HARNESS Motor, Long |
1 | |
| 18 | 8M0204385 |
HARNESS Motor, Xlong HARNESS Motor, Xlong |
1 | |
| 19 | 8M0217226 |
TUBING TUBING |
AR | |
| 2 | 8M0204395 |
HARNESS Outboard HARNESS Outboard |
1 | |
| 20 | 8M0204396 |
HOSE ASSEMBLY Vent Tube HOSE ASSEMBLY Vent Tube |
1 | |
| 21 | 8M0214940 |
TIE STRAP TIE STRAP |
1 | |
| 22 | 826365 |
ГАЙКА (M8) NUT (M8) |
1 | |
| 23 | 892233 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 24 | 8M0204404 |
COVER Stud COVER Stud |
1 | |
| 25 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
5 | |
| 26 | 8M0204386 |
HARNESS Battery Interface HARNESS Battery Interface |
1 | |
| 27 | 8M0204391 |
BRACKET Connector Mount BRACKET Connector Mount |
1 | |
| 28 | 8M0204390 |
SCREW M3 x .5 x 10 SOC FLAT HD SCREW M3 x .5 x 10 SOC FLAT HD |
2 | |
| 29 | 8M0190980 |
GROMMET GROMMET |
2 | |
| 3 | 832969T05 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – коричневый – 5 A FUSE Mini - Tan - 5 Ampere |
1 | |
| 30 | 822003 |
ВТУЛКА BUSHING |
2 | |
| 31 | 8M0221596 |
SCREW (M4 x 0.7 x 16) Flange HD W/P SCREW (M4 x 0.7 x 16) Flange HD W/P |
3 | |
| 32 | 8M0161118 |
CLIP Cable Tie CLIP Cable Tie |
13 | |
| 33 | 8M0214888 |
ELECTRONIC CONTROL MODULE 7.5e Tiller ELECTRONIC CONTROL MODULE 7.5e Tiller |
1 | |
| 33 | 8M0219438 |
ELECTRONIC CONTROL MODULE 7.5e Remote Control ELECTRONIC CONTROL MODULE 7.5e Remote Control |
1 | |
| 34 | 8M0214870 |
SCREW (M6 x 30) TORX PAN HD SCREW (M6 x 30) TORX PAN HD |
2 | |
| 35 | 8M0204398 |
MODULE DC-DC Converter MODULE DC-DC Converter |
1 | |
| 36 | 8M0215689 |
DISPLAY LCD, Screen Tiller Handle Models DISPLAY LCD, Screen Tiller Handle Models |
1 | |
| 4 | 8M0204388 |
COVER Fuse, 2 Pin Connector COVER Fuse, 2 Pin Connector |
1 | |
| 5 | 8M0055652 |
КОНЦЕВАЯ КАБЕЛЬНАЯ МУФТА В СБОРЕ 10-конт. (CAN P и H) TERMINATOR ASSEMBLY 10 Pin (CAN P and H) |
1 | |
| 6 | 8M0176362 |
CAP Female CAP Female |
1 | |
| 7 | 8M0219649 |
DUST CAP 6 POS DT Series Remote Control Models DUST CAP 6 POS DT Series Remote Control Models |
1 | |
| 8 | 8M0219650 |
WEATHER CAP Tiller Handle Models WEATHER CAP Tiller Handle Models |
1 | |
| 9 | 8M0055652 |
КОНЦЕВАЯ КАБЕЛЬНАЯ МУФТА В СБОРЕ 10-конт. (CAN P и H) Tiller Handle Models TERMINATOR ASSEMBLY 10 Pin (CAN P and H) Tiller Handle Models |
1 |
