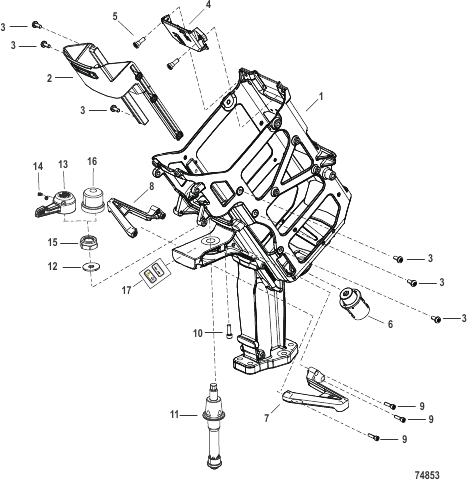

Control Head
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0204355 |
BRACKET Main Support BRACKET Main Support |
1 | |
| 10 | 8M0142829 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
1 | |
| 11 | 8M0204344 |
SWIVEL TUBE ASSEMBLY Probe Shaft SWIVEL TUBE ASSEMBLY Probe Shaft |
1 | |
| 12 | 4002325 |
ШАЙБА WASHER (17.42 ID x 32 OD. 3.0) |
1 | |
| 13 | 8M0215999 |
LEVER Probe Shaft Tiller Handle Models [1Q000130] THRU [1Q020274] LEVER Probe Shaft Tiller Handle Models [1Q000130] THRU [1Q020274] |
1 | |
| 14 | 8M0216023 |
SET SCREW (M4 x 7 x 6 MM) Tiller Handle Models [1Q000130] THRU [1Q020274] SET SCREW (M4 x 7 x 6 MM) Tiller Handle Models [1Q000130] THRU [1Q020274] |
2 | |
| 15 | 8M0216009 |
LOCKNUT (M16 x 2) LOCKNUT (M16 x 2) |
1 | |
| 16 | 8M0216011 |
CAP Probe Shaft Remote Control Models CAP Probe Shaft Remote Control Models |
1 | |
| 16 | 8M0216011 |
CAP Probe Shaft Tiller Handle Models [1Q020275] & Up CAP Probe Shaft Tiller Handle Models [1Q020275] & Up |
1 | |
| 17 | 8M0214894 |
DECAL SET Instruction DECAL SET Instruction |
1 | |
| 2 | 8M0204352 |
BRACKET Battery BRACKET Battery |
1 | |
| 3 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
6 | |
| 4 | 8M0204357 |
BRACKET Connector Holder BRACKET Connector Holder |
1 | |
| 5 | 8M0204356 |
SCREW Shoulder M6 SCREW Shoulder M6 |
2 | |
| 6 | 8M0204343 |
SPRING Battery SPRING Battery |
1 | |
| 7 | 8M0204353 |
HANDLE Lift Support, Port HANDLE Lift Support, Port |
1 | |
| 8 | 8M0204354 |
HANDLE Lift Support, Starboard HANDLE Lift Support, Starboard |
1 | |
| 9 | 8M0216000 |
SCREW (M5 x 20) SCREW (M5 x 20) |
3 |
