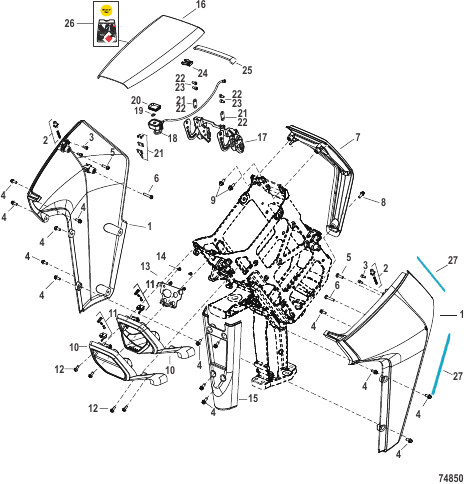

Cowl
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0204475 |
COWL SIDE Starboard, Mercury Decaled COWL SIDE Starboard, Mercury Decaled |
1 | |
| 1 | 8M0204477 |
COWL SIDE Port, Mercury Decaled COWL SIDE Port, Mercury Decaled |
1 | |
| 10 | 8M0204488 |
COWL FRONT Upper Remote Control Models COWL FRONT Upper Remote Control Models |
1 | |
| 10 | 8M0204485 |
COWL FRONT Upper Tiller Handle Models COWL FRONT Upper Tiller Handle Models |
1 | |
| 11 | 8M0204486 |
LATCH LEVER KIT LATCH LEVER KIT |
1 | |
| 12 | 8M0224721 |
SCREW M6 x 12 Torx Pan HD SCREW M6 x 12 Torx Pan HD |
4 | |
| 13 | 8M0204487 |
BRACKET Display Tiller Handle Models BRACKET Display Tiller Handle Models |
1 | |
| 14 | 8M0047718 |
ВИНТ (M5 x 8MM) Tiller Handle Models SCREW (M5 X 8MM) Tiller Handle Models |
4 | |
| 15 | 8M0204479 |
COWL FRONT Lower COWL FRONT Lower |
1 | |
| 16 | 8M0204480 |
COWL HOOD COWL HOOD |
1 | |
| 17 | 8M0204481 |
HINGE ASSEMBLY HINGE ASSEMBLY |
1 | |
| 18 | 8M0204484 |
TETHER ASSEMBLY Connector Cover TETHER ASSEMBLY Connector Cover |
1 | |
| 19 | 821027 |
ГАЙКА ТОЛКАТЕЛЯ PUSH NUT |
1 | |
| 2 | 8M0204476 |
BUMPER KIT Cowl BUMPER KIT Cowl |
1 | |
| 20 | 8M0204483 |
SEAL CONNECTOR SEAL CONNECTOR |
1 | |
| 21 | 8M0204482 |
STRIKER KIT STRIKER KIT |
1 | |
| 22 | 8M0219926 |
BACKER PLATE KIT BACKER PLATE KIT |
1 | |
| 23 | 889546 |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
4 | |
| 24 | 8M0138447 |
ЗАЖИМ Вилка троса, запасная CLIP Lanyard Fork, Spare |
1 | |
| 25 | 8M0192214 |
STRIP Foam STRIP Foam |
1 | |
| 26 | 8M0214894 |
DECAL SET Instruction Set contains Battery Install and Weather Cap Decal DECAL SET Instruction Set contains Battery Install and Weather Cap Decal |
1 | |
| 27 | 8M0214895 |
DECAL SET Stripes Set contains Top and Lower Strip DECAL SET Stripes Set contains Top and Lower Strip |
1 | |
| 3 | 889546 |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
2 | |
| 4 | 8M0224718 |
SCREW (M6 x 14) SCREW (M6 x 14) |
14 | |
| 5 | 8M0224719 |
SCREW M6 x 20 Torx Pan HD SCREW M6 x 20 Torx Pan HD |
2 | |
| 6 | 8M0224720 |
SCREW M6 x 30 Torx Pan HD SCREW M6 x 30 Torx Pan HD |
2 | |
| 7 | 8M0204478 |
COWL REAR Avator Decaled COWL REAR Avator Decaled |
1 | |
| 8 | 8M0224725 |
SCREW (M6 x 16) Hex Flange Screw SCREW (M6 x 16) Hex Flange Screw |
1 | |
| 9 | 8M0204356 |
SCREW Shoulder M6 SCREW Shoulder M6 |
2 |
