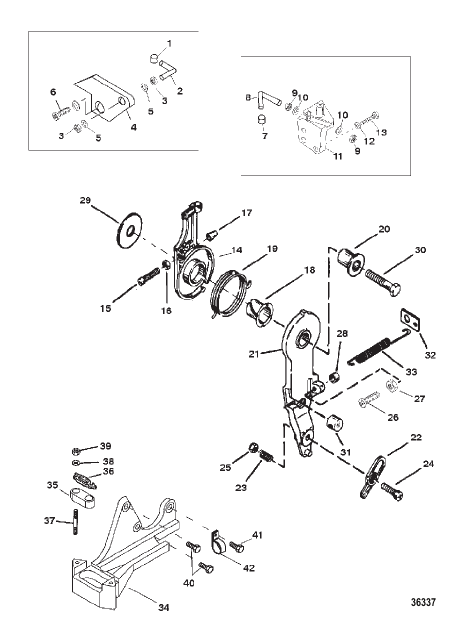

THROTTLE LINKAGE
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 848039A44 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| 1 | 74897 |
ШАРНИР DESIGN I PIVOT DESIGN I |
1 | superseded |
| 10 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) DESIGN II WASHER (.203 x .406 x .040) DESIGN II |
2 | |
| 11 | 8489741 |
КРОНШТЕЙН DESIGN II BRACKET DESIGN II |
1 | superseded |
| 12 | 814806 |
ШАЙБА (0.344 x 0.688 x 0.065), нержавеющая сталь DESIGN II WASHER (.344 x .688 x .065) Stainless Steel DESIGN II |
3 | superseded |
| 13 | 53576 |
ВИНТ (0.312-18 x 1.125) DESIGN II SCREW (.312-18 x 1.125) DESIGN II |
3 | |
| 14 | 78441 |
РЫЧАГ Опережение зажигания LEVER Spark Advance |
1 | discontinued |
| 15 | 64022 |
ВИНТ (0.250-20 x 2.125) SCREW (.250-20 x 2.125) |
1 | |
| 16 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 17 | 26852 |
ПРОБКА Нейлон CAP Nylon |
1 | |
| 18 | 55171 |
ВТУЛКА BUSHING |
1 | discontinued |
| 19 | 68784 |
ПРУЖИНА SPRING |
1 | |
| 2 | 849036 |
СТЕРЖЕНЬ ТЯГИ DESIGN I LINK ROD DESIGN I |
1 | |
| 20 | 55164 |
ВТУЛКА BUSHING |
1 | |
| 21 | 77837 |
РЫЧАГ Управление газом LEVER Throttle Control |
1 | discontinued |
| 22 | 39483 |
ЗАЩЕЛКА LATCH |
1 | |
| 23 | 20099 |
ПРУЖИНА SPRING |
1 | |
| 24 | 69026 |
ВИНТ (0.250-28 x 0.880) SCREW (.250-28 x .880) |
1 | |
| 25 | 35045 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 26 | 64022 |
ВИНТ (0.250-20 x 2.125) SCREW (.250-20 x 2.125) |
1 | |
| 27 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 28 | 26852 |
ПРОБКА Нейлон CAP Nylon |
1 | |
| 29 | 46765 |
ШАЙБА (0.390 x 1.50 x 0.120) WASHER (.390 x 1.50 x .120) |
1 | |
| 3 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь DESIGN I NUT (#10-32) Stainless Steel DESIGN I |
2 | |
| 30 | 818165 |
ВИНТ (0.375-16 x 1.75) SCREW (.375-16 x 1.75) |
1 | |
| 31 | 60572 |
ДИФФУЗОР BARREL |
1 | superseded |
| 32 | 75275 |
ЗАЖИМ CLAMP |
1 | |
| 33 | 91821 |
ПРУЖИНА (LIGHT) SPRING (LIGHT) |
1 | discontinued |
| 33 | 848470 |
ПРУЖИНА (HEAVY) SPRING (HEAVY) |
1 | |
| 34 | 146692 |
КРОНШТЕЙН Анкер BRACKET Anchor |
1 | discontinued |
| 35 | 16813 |
КОЛПАЧОК CUP |
1 | discontinued |
| 36 | 16814 |
ЗАЩЕЛКА LATCH |
1 | |
| 37 | 18101 |
ШПИЛЬКА STUD |
2 | superseded |
| 38 | 73288 |
ШАЙБА (0.220 x 0.500 x 0.030), нержавеющая сталь WASHER (.220 x .500 x .030) Stainless Steel |
2 | |
| 39 | 18102 |
ГАЙКА (№12-24) NUT (#12-24) |
2 | |
| 4 | 964561 |
КРОНШТЕЙН Распределение DESIGN I BRACKET Timing DESIGN I |
1 | discontinued |
| 40 | 62958 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
2 | discontinued |
| 41 | 60147 |
ВИНТ (0.250-20 x 1.25) SCREW (.250-20 x 1.25) |
1 | |
| 42 | 54457 |
J-ЗАЖИМ J CLIP |
1 | |
| 5 | 822836 |
ШАЙБА (0.445 x 0.805 x 0.108) DESIGN I WASHER (.445 x .805 x .108) DESIGN I |
2 | |
| 6 | 72094 |
ВИНТ (0.375-16 x 3.750) DESIGN I SCREW (.375-16 x 3.750) DESIGN I |
1 | |
| 7 | 74897 |
ШАРНИР DESIGN II PIVOT DESIGN II |
1 | superseded |
| 8 | 849036 |
СТЕРЖЕНЬ ТЯГИ DESIGN II LINK ROD DESIGN II |
1 | |
| 9 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь DESIGN II NUT (#10-32) Stainless Steel DESIGN II |
2 |
