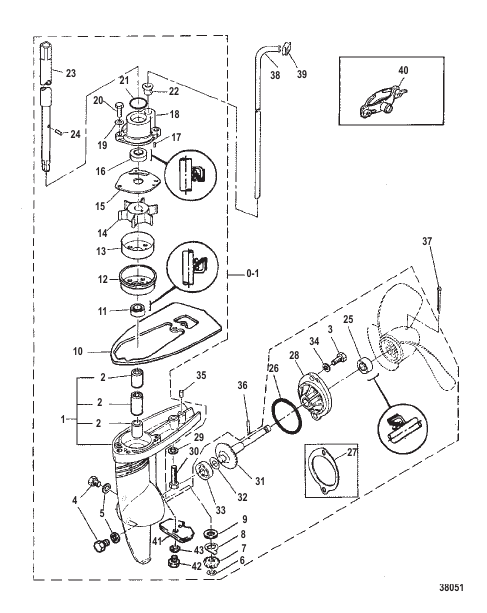

GEARHOUSING ASSEMBLY

Parts (63)

#Part NumberDescriptionQtyStatus
- 813500M GASKET SET Lower Unit [M-131232] & Up 1 disc.
- 18858M GASKET SET Lower Unit [M-115872] THRU [M-131231] 1 disc.
- 96338M GASKET SET Lower Unit [M-008801] THRU [M-115871] 1 disc.
- 92525M GASKET SET Lower Unit [M-008800] & Below 1 disc.
- 814453M REPAIR KIT Water Pump [M-131232] & Up 1 disc.
- 96339M REPAIR KIT Water Pump [M-008801] THRU [M-093604] 1 disc.
0-1 810946M GEAR HOUSING ASSEMBLY [M-142377] & Up 1 disc.
0-1 813496M GEAR HOUSING ASSEMBLY [M-131232] THRU [M-142376] 1 superseded
0-1 9495M GEAR HOUSING ASSEMBLY [M-131231] & Below 1 superseded
1 810955M   GEAR HOUSING ASSEMBLY [M-142377] & Up 1 disc.
1 9504M   GEAR HOUSING ASSEMBLY [M-093605] THRU [M-142376] 1 superseded
1 7861M   GEAR HOUSING ASSEMBLY [M-093604] & Below 1 disc.
10 92528M   PLATE 1 disc.
11 82251M   SEAL Oil 1
12 92529M   SEAL Oil PROTECTOR 1 disc.
13 80393M   INSERT CARTRIDGE 1 disc.
14 80395M   IMPELLER 1
15 80394M   OUTER PLATE CARTRIDGE 1 disc.
16 813497M   SEAL Oil [M-131232] & Up 1 superseded
16 82251M   SEAL Oil [M-008801] THRU [M-131231] 1
16 82223M   SEAL Oil [M-008800] & Below 1 superseded
17 82356M   PIN Dowel 2 disc.
18 813498M   COVER WATER PUMP HOUSING [M-131232] & Up 1 disc.
18 96337M   COVER WATER PUMP HOUSING [M-131231] & Below 1 disc.
19 82211M   WASHER LOCK 2 disc.
2 95465M     BUSHING DRIVESHAFT [M-093604] & Below 2 disc.
20 92521M   BOLT 2 disc.
21 82269M   O-RING 1 disc.
22 80398M   RUBBER WATER SEAL 1 disc.
23 92522M   DRIVESHAFT 1 disc.
24 82355M   PIN Dowel 1 disc.
25 82250M   SEAL Oil PROPELLER SHAFT 1
26 14175M   O-RING GEAR HOUSING CAP [M-093605] & Up 1 disc.
27 80402M   GASKET GEAR HOUSING CAP [M-093604] & Below 1 superseded
28 813499M   CAP Gear Housing [M-093605] & Up 1 disc.
28 80401M   COVER [M-093604] & Below 1 disc.
29 82214M   WASHER 1 disc.
3 84368M   BOLT 2 disc.
30 83285M   BOLT 1 disc.
31 80406M   GEAR ASSEMBLY 1 disc.
32 80407M   SHIM GEAR ADJUST (0.3 MM) AR disc.
32 80408M   SHIM GEAR ADJUST (0.5 MM) AR disc.
32 14174M   SHIM GEAR ADJUST (0.4 MM) [M-093605] & Up AR disc.
33 82290M   BEARING PROPELLER SHAFT 1 disc.
34 82214M   WASHER 2 disc.
35 82360M PIN Dowel [M-104886] & Up 2 disc.
35 92524M PIN DOWEL [M-104885] & Below 2 disc.
36 81896M PIN Drive 1 disc.
37 82134M COTTER PIN 1 disc.
38 80396M TUBE Water 1 disc.
39 80397M RUBBER WATER SEAL 1 disc.
4 81924M   PLUG OIL DRAIN 2 disc.
40 84358M FLUSHING ATTACHMENT 1 disc.
41 810945M ANODE [M-142377] & Up 1 disc.
42 91772M BOLT [M-142377] & Up 1 disc.
43 82214M WASHER [M-142377] & Up 1 disc.
5 81987M   GASKET OIL DRAIN PLUG 2 superseded
6 82331M   RING Snap 1 disc.
7 80405M   GEAR Pinion 1 disc.
8 96311M   THRUST WASHER DRIVESHAFT [M-093605] & Up 1 disc.
8 81875M   THRUST WASHER DRIVESHAFT [M-093604] & Below 1 disc.
9 80404M   WASHER DRIVESHAFT (0.3 MM) AR disc.
9 82802M   SHIM DRIVESHAFT (0.5 MM) AR disc.
