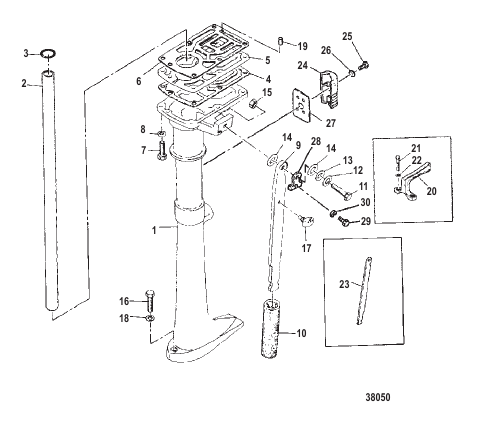

DRIVESHAFT HOUSING AND STEERING HANDLE
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814462M |
КОРПУС Карданный вал [M-131232] & Up HOUSING Driveshaft [M-131232] & Up |
1 | discontinued |
| 1 | 8798M |
КОРПУС Карданный вал [M-044561] THRU [M-131231] HOUSING Driveshaft [M-044561] THRU [M-131231] |
1 | discontinued |
| 1 | 7862M |
КОРПУС Карданный вал [M-044560] & Below HOUSING Driveshaft [M-044560] & Below |
1 | discontinued |
| 10 | 80380M |
РУКОЯТКА STEERING GRIP STEERING |
1 | discontinued |
| 11 | 813494M |
БОЛТ [M-131232] & Up BOLT [M-131232] & Up |
1 | discontinued |
| 11 | 81704M |
БОЛТ [M-131231] & Below BOLT [M-131231] & Below |
1 | superseded |
| 12 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 13 | 82216M |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 81802M |
ШАЙБА WASHER |
2 | discontinued |
| 15 | 82392M |
ГАЙКА NUT |
1 | superseded |
| 16 | 83285M |
БОЛТ BOLT |
1 | discontinued |
| 17 | 80383M |
ДЕРЖАТЕЛЬ DRIVE PIN HOLDER DRIVE PIN |
1 | discontinued |
| 18 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 19 | 82360M |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 2 | 813491M |
ОБШИВКА DRIVESHAFT [M-131232] & Up CASING DRIVESHAFT [M-131232] & Up |
1 | discontinued |
| 2 | 80399M |
ТРУБА DRIVESHAFT [M-131231] & Below TUBE DRIVESHAFT [M-131231] & Below |
1 | discontinued |
| 20 | 84398M |
КРОНШТЕЙН CARRYING BRACKET CARRYING |
1 | discontinued |
| 21 | 92534M |
БОЛТ BOLT |
2 | superseded |
| 22 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 23 | 84399M |
РУКОЯТКА Рулевой механизм [M-131231] & Below HANDLE Steering [M-131231] & Below |
1 | discontinued |
| 24 | 41248M |
КРЫШКА [M-044561] & Up COVER [M-044561] & Up |
1 | discontinued |
| 25 | 83870M |
ВИНТ [M-044561] & Up SCREW [M-044561] & Up |
1 | discontinued |
| 26 | 82214M |
ШАЙБА [M-044561] & Up WASHER [M-044561] & Up |
1 | discontinued |
| 27 | 41875M |
ПРОКЛАДКА [M-044561] & Up GASKET [M-044561] & Up |
1 | discontinued |
| 28 | 813495M |
ШАЙБА [M-131232] & Up WASHER [M-131232] & Up |
1 | discontinued |
| 29 | 84088M |
ВИНТ (M6 x 10) [M-131232] & Up SCREW (M6 x 10) [M-131232] & Up |
1 | discontinued |
| 3 | 82269M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 30 | 82212M |
СТОПОРНАЯ ШАЙБА [M-131232] & Up LOCKWASHER [M-131232] & Up |
1 | discontinued |
| 4 | 80355M |
ПРОКЛАДКА EXHAUST GUIDE-LOWER GASKET EXHAUST GUIDE-LOWER |
1 | superseded |
| 5 | 813492M |
НАПРАВЛЯЮЩАЯ EXHAUST GUIDE EXHAUST |
1 | discontinued |
| 6 | 92532M |
ПРОКЛАДКА EXHAUST GUIDE-UPPER GASKET EXHAUST GUIDE-UPPER |
1 | superseded |
| 7 | 82405M |
БОЛТ BOLT |
6 | discontinued |
| 8 | 82214M |
ШАЙБА WASHER |
6 | discontinued |
| 9 | 813493M |
ARM STEERING [M-131232] & Up ARM STEERING [M-131232] & Up |
1 | discontinued |
| 9 | 80379M |
ARM Рулевой механизм [M-131231] & Below ARM Steering [M-131231] & Below |
1 | discontinued |
