Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Outboard / 2 Stroke Carb / 2B HP / [6A1-000101 THRU 0D918221] - USA - Cat.# 90-92585 / CLAMP AND SWIVEL BRACKET

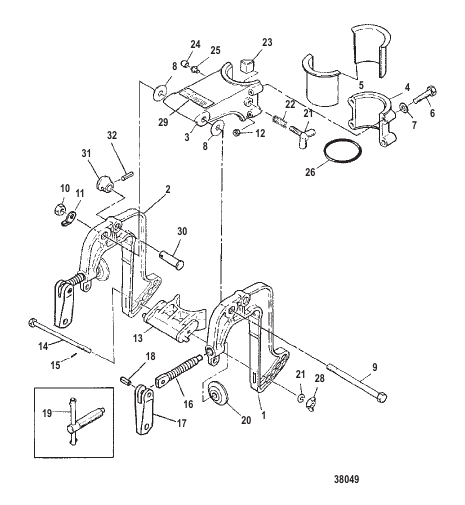

CLAMP AND SWIVEL BRACKET

Parts (37)

#Part NumberDescriptionQtyStatus
1 813486M CLAMP BRACKET (PORT) [M-131232] & Up 1 disc.
1 9773M CLAMP BRACKET (PORT/STARBOARD) [M-115872] THRU [M-131231] 2 superseded
1 9338M CLAMP BRACKET (PORT/STARBOARD) [M-076692] THRU [M-115871] 2 superseded
1 7863M CLAMP BRACKET (PORT/STARBOARD) [M-076691] & Below 2 disc.
10 82392M NUT 1 superseded
11 18840M PLATE CLAMP BRACKET [M-115872] & Up 1 disc.
11 82215M LOCKWASHER [M-115871] & Below 1 disc.
12 82389M NUT 4 disc.
13 92537M RECIEVER THRUST 1 disc.
14 92538M BOLT RECEIVER 1 disc.
15 82140M PIN Roll 1 disc.
16 91783M SCREW TRANSOM CLAMP [M-076692] & Up 2 disc.
17 91784M HANDLE TRANSOM CLAMP [M-076692] & Up 2
18 41267M PIN [M-076692] & Up 2 superseded
19 92539M CLAMP SCREW [M-076691] & Below 2 disc.
2 813487M CLAMP BRACKET (STARBOARD) [M-131232] & Up 1 disc.
20 80638M PAD TRANSOM CLAMP SCERW 2 disc.
21 81745M WING BOLT 1 disc.
22 82083M SPRING CO-PILOT ADJUSTING SCREW 1 disc.
23 80381M FRICTION PIECE 1 disc.
24 81439M CAP GREASE FITTING [M-142376] & Below 1 disc.
25 82369M FITTING GREASE 1
26 82279M O-RING 1 disc.
27 81791M WASHER 1 disc.
28 81776M WING NUT 1 disc.
29 95570M DECAL [M-104886] THRU [M-115871] 1 disc.
3 813488M SWIVEL BRACKET FRONT [M-131232] & Up 1 disc.
3 7864M SWIVEL BRACKET FRONT [M-131231] & Below 1 superseded
30 813489M SHAFT STOPPER [M-131232] & Up 1 disc.
31 813490M KNOB STOPPER [M-131232] & Up 1 disc.
32 82147M PIN ROLL [M-131232] & Up 1 disc.
4 92535M SWIVEL BRACKET REAR 1 disc.
5 80382M BUSHING PILOT SHAFT 2 disc.
6 92536M BOLT 4 superseded
7 82214M WASHER 4 disc.
8 81845M WASHER 2 disc.
9 81705M BOLT 1 disc.
