Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Outboard / 2 Stroke Carb / 2B HP / [6A1-000101 THRU 0D918221] - USA - Cat.# 90-92585 / CARBURETOR

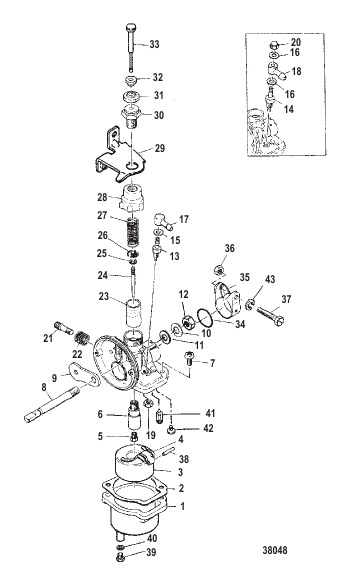

CARBURETOR

CARBURETOR

Parts (64)

#Part NumberDescriptionQtyStatus
- 813485M РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор [M-131232] & Up
REPAIR KIT Carburetor [M-131232] & Up 		1 discontinued
- 41859M РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор [M-037284] THRU [M-131231]
REPAIR KIT Carburetor [M-037284] THRU [M-131231] 		1 discontinued
- 41859M РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор [M-037283] & Below
REPAIR KIT Carburetor [M-037283] & Below 		1 discontinued
0-1 813479M КАРБЮРАТОР [M-131232] & Up
CARBURETOR [M-131232] & Up 		1 discontinued
0-1 814458M КАРБЮРАТОР В СБОРЕ [M-093605] THRU [M-131231]
CARBURETOR ASSEMBLY [M-093605] THRU [M-131231] 		1 superseded
0-1 7859M КАРБЮРАТОР В СБОРЕ [M-093604] & Below
CARBURETOR ASSEMBLY [M-093604] & Below 		1 superseded
1 813480M ПОПЛАВКОВАЯ КАМЕРА [M-131232] & Up
FLOAT BOWL [M-131232] & Up 		1 discontinued
1 13997M ПОПЛАВКОВАЯ КАМЕРА [M-093605] THRU [M-131231]
FLOAT BOWL [M-093605] THRU [M-131231] 		1 discontinued
1 82832M ПОПЛАВКОВАЯ КАМЕРА [M-093604] & Below
FLOAT BOWL [M-093604] & Below 		1 discontinued
10 92515M СТОПОРНАЯ ШАЙБА
LOCKWASHER 		1 discontinued
11 96335M ШАЙБА
WASHER 		1 discontinued
12 96336M ГАЙКА
NUT 		1 discontinued
13 41853M КОМПЛЕКТ КЛАПАНОВ / СЕДЕЛ Впуск [M-037284] THRU [M-131231]
VALVE/SEAT KIT Inlet [M-037284] THRU [M-131231] 		1 discontinued
13 82601M КОМПЛЕКТ КЛАПАНОВ / СЕДЕЛ Впуск [M-037283] & Below
VALVE/SEAT KIT Inlet [M-037283] & Below 		1 discontinued
14 80347M КОМПЛЕКТ КЛАПАНОВ / СЕДЕЛ Впуск [M-028495] & Below
VALVE/SEAT KIT Inlet [M-028495] & Below 		1 discontinued
15 41854M ПРОКЛАДКА VALVE SEAT [M-037284] THRU [M-131231]
GASKET VALVE SEAT [M-037284] THRU [M-131231] 		1 discontinued
16 80327M ПРОКЛАДКА VALVE SEAT [M-037283] & Below
GASKET VALVE SEAT [M-037283] & Below 		2 discontinued
17 41855M СОЕДИНИТЕЛЬ [M-037284] THRU [M-131231]
CONNECTOR [M-037284] THRU [M-131231] 		1 discontinued
18 80326M СОЕДИНИТЕЛЬ [M-037283] & Below
CONNECTOR [M-037283] & Below 		1 discontinued
19 41856M ГАЙКА VALVE SEAT [M-037284] THRU [M-131231]
NUT VALVE SEAT [M-037284] THRU [M-131231] 		1 discontinued
2 810781M ПРОКЛАДКА FLOAT BOWL [M-131232] & Up
GASKET FLOAT BOWL [M-131232] & Up 		1 discontinued
2 80344M ПРОКЛАДКА FLOAT BOWL [M-131231] & Below
GASKET FLOAT BOWL [M-131231] & Below 		1 superseded
20 80348M ГАЙКА VALVE SEAT [M-037283] & Below
NUT VALVE SEAT [M-037283] & Below 		1 discontinued
21 80328M ВИНТ PILOT ADJUSTING
SCREW PILOT ADJUSTING 		1 discontinued
22 814460M ПРУЖИНА PILOT ADJUSTING [M-131232] & Up
SPRING PILOT ADJUSTING [M-131232] & Up 		1 discontinued
22 80329M ПРУЖИНА PILOT ADJUSTING [M-131231] & Below
SPRING PILOT ADJUSTING [M-131231] & Below 		1 superseded
23 11912M КЛАПАН THROTTLE [M-076692] & Up
VALVE THROTTLE [M-076692] & Up 		1 discontinued
23 80333M КЛАПАН Дроссельная заслонка [M-076691] & Below
VALVE Throttle [M-076691] & Below 		1 discontinued
24 814461M КЛАПАН NEEDLE [M-131232] & Up
VALVE NEEDLE [M-131232] & Up 		1 discontinued
24 41857M КЛАПАН NEEDLE [M-131231] & Below
VALVE NEEDLE [M-131231] & Below 		1 discontinued
25 80324M ЗАЖИМ VALVE
CLIP VALVE 		1 discontinued
26 80323M СИДЕНЬЕ SPRING
SEAT SPRING 		1 discontinued
27 82599M ПРУЖИНА THROTTLE VALVE
SPRING THROTTLE VALVE 		1 discontinued
28 80325M КРЫШКА MAIN BODY
COVER MAIN BODY 		1 discontinued
29 92516M ФИКСАТОР THROTTLE WIRE
RETAINER THROTTLE WIRE 		1 discontinued
3 810786M ПОПЛАВОК [M-131232] & Up
FLOAT [M-131232] & Up 		1 discontinued
3 80345M ПОПЛАВОК [M-131231] & Below
FLOAT [M-131231] & Below 		1 discontinued
30 80336M ВИНТ Дроссельная заслонка
SCREW Throttle 		1 discontinued
31 80196M КРЫШКА
COVER 		1 discontinued
32 92518M ПРОСТАВКА
SPACER 		1 discontinued
33 92519M ПЛУНЖЕР THROTTLE
PLUNGER THROTTLE 		1 discontinued
34 80332M УПЛОТНИТЕЛЬНОЕ КОЛЬЦО
O-RING 		1 discontinued
35 813481M ЗАЖИМ OUTLET [M-131232] & Up
CLIP OUTLET [M-131232] & Up 		1 discontinued
35 41858M ЗАЖИМ OUTLET [M-131231] & Below
CLIP OUTLET [M-131231] & Below 		1 superseded
36 813482M ГАЙКА [M-131232] & Up
NUT [M-131232] & Up 		1 discontinued
36 92517M ГАЙКА [M-131231] & Below
NUT [M-131231] & Below 		1 discontinued
37 810784M ВИНТ [M-131232] & Up
SCREW [M-131232] & Up 		1 discontinued
37 80321M ВИНТ [M-131231] & Below
SCREW [M-131231] & Below 		1 discontinued
38 810785M ШТИФТ FLOAT [M-131232] & Up
PIN FLOAT [M-131232] & Up 		1 discontinued
38 82804M ШТИФТ Поплавок [M-131231] & Below
PIN Float [M-131231] & Below 		1 superseded
39 13998M КЛАПАН DRAIN [M-093605] & Up
VALVE DRAIN [M-093605] & Up 		1 superseded
4 80346M РЫЧАГ ПОПЛАВКА FLOAT [M-131231] & Below
FLOAT ARM FLOAT [M-131231] & Below 		1 discontinued
40 13999M ПРОКЛАДКА [M-093605] & Up
GASKET [M-093605] & Up 		1 discontinued
41 813483M КЛАПАН NEEDLE [M-131232] & Up
VALVE NEEDLE [M-131232] & Up 		1 discontinued
42 81348M ШТОК [M-131232] & Up
ROD [M-131232] & Up 		1 discontinued
43 82211M ШАЙБА [M-131232] & Up
WASHER [M-131232] & Up 		1 discontinued
5 810783M ВОДОМЕТНЫЙ MAIN (# 96) [M-131232] & Up
JET MAIN (# 96) [M-131232] & Up 		1 discontinued
5 92510M ВОДОМЕТНЫЙ MAIN (# 96) [M-131231] & Below
JET MAIN (# 96) [M-131231] & Below 		1 discontinued
6 810782M ШТУЦЕР MAIN [M-131232] & Up
NOZZLE MAIN [M-131232] & Up 		1 discontinued
6 92511M ШТУЦЕР MAIN [M-131231] & Below
NOZZLE MAIN [M-131231] & Below 		1 discontinued
7 83509M ВИНТ (M4 x 10)
SCREW (M4 x 10) 		2 discontinued
8 92513M РЫЧАГ CHOKE
LEVER CHOKE 		1 discontinued
9 814459M КЛАПАН CHOKE [M-131232] & Up
VALVE CHOKE [M-131232] & Up 		1 discontinued
9 92514M КЛАПАН CHOKE [M-131231] & Below
VALVE CHOKE [M-131231] & Below 		1 discontinued
