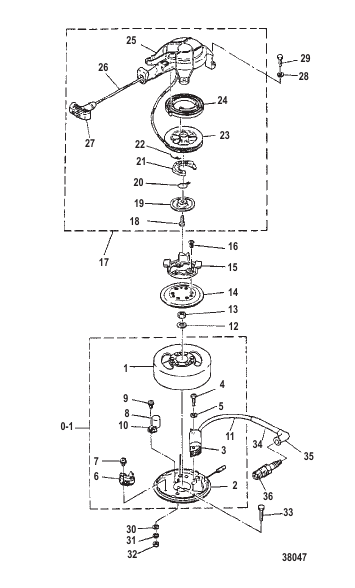

FLYWHEEL MAGNETO AND STARTER
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 7865M |
МАХОВИК MAGNETO В СБОРЕ FLYWHEEL MAGNETO ASSEMBLY |
1 | discontinued |
| 1 | 7866M |
МАХОВИК FLYWHEEL |
1 | discontinued |
| 10 | 80003M |
СМАЗОЧНОЕ УСТРОЙСТВО LUBRICATOR |
1 | discontinued |
| 11 | 82831M |
ВЫВОД ВЫСОКОГО НАПРЯЖЕНИЯ HIGH TENSION LEAD |
1 | discontinued |
| 12 | 82218M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 13 | 82384M |
ГАЙКА FLYWHEEL NUT FLYWHEEL |
1 | discontinued |
| 14 | 92543M |
КРЫШКА FLYWHEEL COVER FLYWHEEL |
1 | discontinued |
| 15 | 92544M |
ШКИВ STARTER PULLEY STARTER |
1 | discontinued |
| 16 | 92545M |
ВИНТ SCREW |
3 | discontinued |
| 17 | 92546M |
СТАРТЕР В СБОРЕ Обратный ход STARTER ASSEMBLY Recoil |
1 | discontinued |
| 18 | 813477M |
БОЛТ [M-131232] & Up BOLT [M-131232] & Up |
1 | superseded |
| 18 | 84303M |
БОЛТ [M-131231] & Below BOLT [M-131231] & Below |
1 | superseded |
| 19 | 813478M |
ВАЛ [M-131232] & Up SHAFT [M-131232] & Up |
1 | discontinued |
| 19 | 92548M |
ВАЛ [M-131231] & Below SHAFT [M-131231] & Below |
1 | superseded |
| 2 | 18839M |
БАЗА MAGNETO [M-115872] & Up BASE MAGNETO [M-115872] & Up |
1 | discontinued |
| 2 | 92541M |
БАЗА MAGNETO [M-115871] & Below BASE MAGNETO [M-115871] & Below |
1 | discontinued |
| 20 | 92549M |
ПРУЖИНА DRIVE PAWL SPRING DRIVE PAWL |
1 | discontinued |
| 21 | 92550M |
СТОПОР DRIVE PAWL DRIVE |
1 | discontinued |
| 22 | 92551M |
ПРУЖИНА STARTER SPRING STARTER |
1 | discontinued |
| 23 | 92552M |
РОЛИК STARTER SHEAVE STARTER |
1 | discontinued |
| 24 | 92553M |
ПРУЖИНА STARTER SPRING STARTER |
1 | discontinued |
| 25 | 7867M |
КОРОБКА STARTER CASE STARTER |
1 | discontinued |
| 26 | F521232 |
ТРОС Стартер ROPE Starter |
1 | |
| 27 | 92554M |
РУКОЯТКА STARTER ROPE HANDLE STARTER ROPE |
1 | discontinued |
| 28 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 29 | 91725M |
БОЛТ [M-142377] & Up BOLT [M-142377] & Up |
3 | superseded |
| 29 | 84247M |
БОЛТ [M-142376] & Below BOLT [M-142376] & Below |
3 | superseded |
| 3 | 92540M |
КАТУШКА IGNITION COIL IGNITION |
1 | superseded |
| 30 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 31 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 32 | 82380M |
ГАЙКА [M-02895] & Below NUT [M-02895] & Below |
2 | superseded |
| 33 | 84237M |
БОЛТ BOLT |
2 | superseded |
| 34 | 82030M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО SPARK PLUG WIRE GROMMET SPARK PLUG WIRE |
1 | discontinued |
| 35 | 80935M |
ЗАЩИТНОЕ ПРИСПОСОБЛЕНИЕ (NOISE SUPPRESSOR) PROTECTER (NOISE SUPPRESSOR) |
1 | superseded |
| 35 | 82788M |
КОЛПАЧОК В СБОРЕ Свеча зажигания CAP ASSEMBLY Spark Plug |
1 | superseded |
| 36 | 84675M |
СВЕЧА ЗАЖИГАНИЯ [M-011601] & Up SPARK PLUG [M-011601] & Up |
1 | superseded |
| 36 | 82370M |
СВЕЧА ЗАЖИГАНИЯ [M-011600] & Below SPARK PLUG [M-011600] & Below |
1 | superseded |
| 4 | 97803M |
ВИНТ [M-028496] & Up SCREW [M-028496] & Up |
2 | discontinued |
| 4 | 82521M |
ВИНТ [M-028495] & Below SCREW [M-028495] & Below |
2 | superseded |
| 5 | 82186M |
ШАЙБА LOCK [M-028495] & Below WASHER LOCK [M-028495] & Below |
2 | discontinued |
| 6 | 82693M |
ВЫКЛЮЧАТЕЛЬ BREAKER |
1 | discontinued |
| 7 | 91693M |
ВИНТ SCREW |
1 | discontinued |
| 8 | 84404M |
КОНДЕНСАТОР CONDENSER |
1 | discontinued |
| 9 | 80001M |
ВИНТ SCREW |
1 | discontinued |
