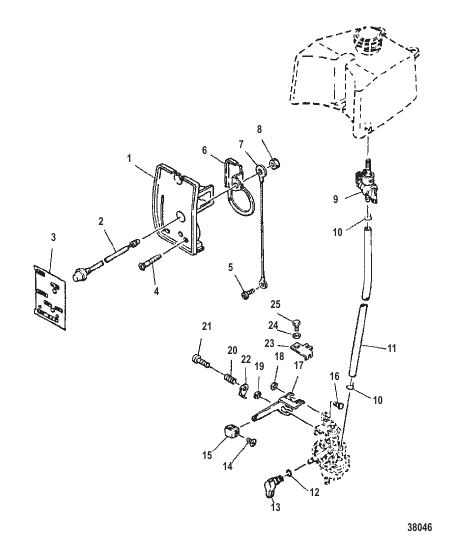

CHOKE-MAGNETO CONTROL AND FUEL COCK
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813475M |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| 1 | 813476M |
ГЛУШИТЕЛЬ В СБОРЕ Впуск [M-061112] & Up SILENCER ASSEMBLY Intake [M-061112] & Up |
1 | discontinued |
| 1 | 84990M |
ГЛУШИТЕЛЬ В СБОРЕ Впуск [M-061111] & Below SILENCER ASSEMBLY Intake [M-061111] & Below |
1 | superseded |
| 10 | 84997M |
ЗАЖИМ HOSE CLAMP HOSE |
2 | superseded |
| 11 | 84997M |
ЗАЖИМ FUEL CLAMP FUEL |
1 | superseded |
| 12 | 84998M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 13 | 84999M |
РУЧКА CHOKE KNOB CHOKE |
1 | discontinued |
| 14 | 95461M |
ВИНТ [M-061112] & Up SCREW [M-061112] & Up |
1 | discontinued |
| 14 | 92505M |
ВИНТ [M-061111] & Below SCREW [M-061111] & Below |
1 | discontinued |
| 15 | 92506M |
РУЧКА MAGNETO CONTROL KNOB MAGNETO CONTROL |
1 | discontinued |
| 16 | 92507M |
ШТИФТ CLEVIS PIN CLEVIS |
1 | discontinued |
| 17 | 18836M |
ARM Педаль газа [M-115872] & Up ARM Accelerator [M-115872] & Up |
1 | discontinued |
| 17 | 92508M |
РЫЧАГ АКСЕЛЕРАТОРА [M-115871] & Below ACCELERATOR ARM [M-115871] & Below |
1 | discontinued |
| 18 | 82327M |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
1 | discontinued |
| 19 | 82209M |
ШАЙБА [M-131231] & Below WASHER [M-131231] & Below |
1 | discontinued |
| 2 | 18835M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп [M-115872] & Up SWITCH ASSEMBLY Stop [M-115872] & Up |
1 | discontinued |
| 2 | 84991M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп [M-115871] & Below SWITCH ASSEMBLY Stop [M-115871] & Below |
1 | superseded |
| 20 | 92509M |
ПРУЖИНА SPRING |
1 | discontinued |
| 21 | 82521M |
ВИНТ SCREW |
1 | superseded |
| 22 | 18838M |
ШАЙБА LOCK [M-115872] & Up WASHER LOCK [M-115872] & Up |
1 | discontinued |
| 23 | 18837M |
СОЕДИНИТЕЛЬ ACCELERATOR [M-115872] & Up LINK ACCELERATOR [M-115872] & Up |
1 | discontinued |
| 24 | 82208M |
ШАЙБА LOCK [M-115872] & Up WASHER LOCK [M-115872] & Up |
1 | superseded |
| 25 | 84313M |
БОЛТ [M-115872] & Up BOLT [M-115872] & Up |
1 | discontinued |
| 3 | 11911M |
НАКЛЕЙКА FRONT DECAL FRONT |
1 | discontinued |
| 4 | 84993M |
ВИНТ SCREW |
2 | discontinued |
| 5 | 83523M |
ВИНТ [M-131232] & Up SCREW [M-131232] & Up |
1 | discontinued |
| 5 | 97804M |
ВИНТ [M-131231] & Below SCREW [M-131231] & Below |
1 | superseded |
| 6 | 84994M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 7 | 84995M |
ПРОВОД LEAD WIRE LEAD |
1 | discontinued |
| 8 | 82393M |
ГАЙКА NUT |
1 | superseded |
| 9 | 95460M |
ТОПЛИВНЫЙ КРАН В СБОРЕ FUEL COCK ASSEMBLY |
1 | superseded |
