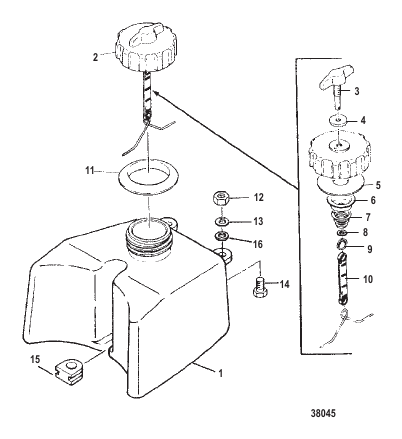

FUEL TANK
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9209M |
БАК Топливо TANK Fuel |
1 | superseded |
| 10 | 82821M |
ИНДИКАТОР INDICATOR |
1 | discontinued |
| 11 | 95458M |
СИДЕНЬЕ CAP ASSEMBLY SEAT CAP ASSEMBLY |
1 | discontinued |
| 12 | 82389M |
ГАЙКА [M-142377] & Up NUT [M-142377] & Up |
2 | discontinued |
| 12 | 82380M |
ГАЙКА [M-142376] & Below NUT [M-142376] & Below |
2 | superseded |
| 13 | 82212M |
СТОПОРНАЯ ШАЙБА SPRING [M-093605] & Up LOCKWASHER SPRING [M-093605] & Up |
2 | discontinued |
| 14 | 82423M |
БОЛТ [M-142377] & Up BOLT [M-142377] & Up |
2 | discontinued |
| 14 | 82423M |
БОЛТ [M-142376] & Below BOLT [M-142376] & Below |
2 | discontinued |
| 15 | 92565M |
ДЕМПФЕР LOCATING DAMPER LOCATING |
1 | discontinued |
| 16 | 92564M |
ШАЙБА WASHER |
2 | discontinued |
| 2 | 18857M |
КОЛПАЧОК В СБОРЕ CAP ASSEMBLY |
1 | discontinued |
| 3 | 11910M |
ВИНТ AIR [M-076692] & Up SCREW AIR [M-076692] & Up |
1 | discontinued |
| 3 | 82813M |
ВИНТ AIR [M-076691] & Below SCREW AIR [M-076691] & Below |
1 | superseded |
| 4 | 82814M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 5 | 82815M |
УПАКОВКА PACKING |
1 | discontinued |
| 6 | 82817M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 7 | 82819M |
ПРУЖИНА COMPRESSION SPRING COMPRESSION |
1 | discontinued |
| 8 | 82847M |
ШАЙБА WASHER |
1 | discontinued |
| 9 | 82820M |
ПРУЖИНА SAFETY SPRING SAFETY |
1 | discontinued |
