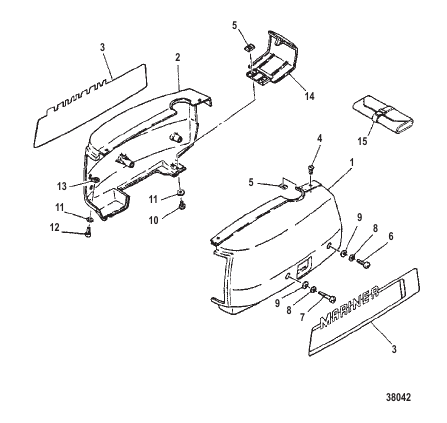

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9336M |
ВЕРХНИЙ КОЖУХ В СБОРЕ PORT [M-076692] & Up TOP COWL ASSEMBLY PORT [M-076692] & Up |
1 | disc. |
| 1 | 9206M |
ВЕРХНИЙ КОЖУХ В СБОРЕ PORT [M-061112] THRU [M-076691] TOP COWL ASSEMBLY PORT [M-061112] THRU [M-076691] |
1 | superseded |
| 1 | 7869M |
ВЕРХНИЙ КОЖУХ В СБОРЕ PORT [M-061111] & Below TOP COWL ASSEMBLY PORT [M-061111] & Below |
1 | disc. |
| 10 | 83523M |
ВИНТ [M-131232] & Up SCREW [M-131232] & Up |
2 | disc. |
| 10 | 14232M |
ВИНТ [M-131231] & Below SCREW [M-131231] & Below |
2 | disc. |
| 11 | 82211M |
ШАЙБА WASHER |
4 | disc. |
| 12 | 14232M |
ВИНТ [M-131232] & Up SCREW [M-131232] & Up |
2 | disc. |
| 12 | 83523M |
ВИНТ [M-131231] & Below SCREW [M-131231] & Below |
2 | disc. |
| 13 | 92560M |
ГАЙКА NUT |
2 | disc. |
| 14 | 11907M |
КРЫШКА PLUG CAP [M-061112] & Up COVER PLUG CAP [M-061112] & Up |
1 | disc. |
| 14 | 92561M |
КРЫШКА PLUG CAP [M-061111] & Below COVER PLUG CAP [M-061111] & Below |
1 | superseded |
| 15 | 92562M |
КОМПЛЕКТ ИНСТРУМЕНТОВ TOOL KIT |
1 | superseded |
| 2 | 9337M |
ВЕРХНИЙ КОЖУХ В СБОРЕ STARBOARD [M-061112] & Up TOP COWL ASSEMBLY STARBOARD [M-061112] & Up |
1 | disc. |
| 2 | 7868M |
ВЕРХНИЙ КОЖУХ В СБОРЕ STARBOARD [M-061111] & Below TOP COWL ASSEMBLY STARBOARD [M-061111] & Below |
1 | disc. |
| 3 | 810931A90 |
НАКЛЕЙКА SIDE SET [M-142377] & Up DECAL SIDE SET [M-142377] & Up |
1 | disc. |
| 3 | 11906M |
НАКЛЕЙКА SIDE SET [M-142376] & Below DECAL SIDE SET [M-142376] & Below |
1 | disc. |
| 4 | 92556M |
ВИНТ SCREW |
2 | disc. |
| 5 | 92557M |
ГАЙКА NUT |
4 | disc. |
| 6 | 82178M |
ВИНТ SCREW |
2 | superseded |
| 7 | 92559M |
ВИНТ SCREW |
2 | disc. |
| 8 | 82212M |
СТОПОРНАЯ ШАЙБА LOCK LOCKWASHER LOCK |
4 | disc. |
| 9 | 82214M |
ШАЙБА WASHER |
4 | disc. |
