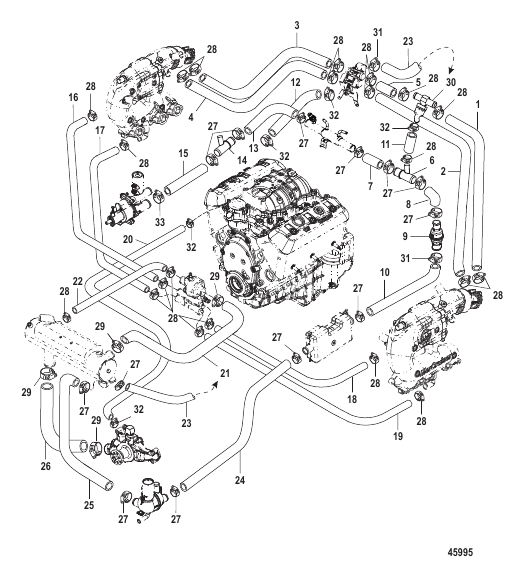

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M2019984 |
HOSE Fitting to Elbow Port (No Rise)
|
1 |
|
| 1 |
8M2020615 |
HOSE Fitting to Elbow Port (2 Inch Rise)
|
1 |
|
| 1 |
8M2020619 |
HOSE Fitting to Elbow Port (4 Inch Rise)
|
1 |
|
| 1 |
8M2020622 |
HOSE Fitting to Elbow Port (6 Inch Rise)
|
1 |
|
| 10 |
8M2020273 |
HOSE Check Valve to Fuel Cooler
|
1 |
|
| 11 |
8M2020276 |
HOSE Drain to Y-Fitting
|
1 |
|
| 12 |
8M2021039 |
HOSE Drain
|
1 |
|
| 13 |
8M2020373 |
HOSE Cooler to Fitting
|
1 |
|
| 14 |
862993 |
FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
|
1 |
|
| 15 |
8M2020943 |
HOSE Sea Pump to Fitting
|
1 |
|
| 16 |
8M2018849 |
HOSE Thermostat to Manifold Starboard, Top (All Rise)
|
1 |
|
| 17 |
8M2017413 |
HOSE Thermostat to Manifold Starboard, Bottom (All Rise)
|
1 |
|
| 18 |
8M2018848 |
HOSE Thermostat to Manifold Port, Top (All Rise)
|
1 |
|
| 19 |
8M2018020 |
HOSE Thermostat to Manifold Port, Bottom (All Rise)
|
1 |
|
| 2 |
8M2021624 |
HOSE Poppet to Elbow Port (0,2,4 Inch Rise)
|
1 |
|
| 2 |
8M2020625 |
HOSE Poppet to Elbow Port (6 Inch Riser)
|
1 |
|
| 20 |
864551 |
HOSE Intake to Circulation Pump
|
1 |
|
| 21 |
864506 |
HOSE Thermostat to Heat Exchanger
|
1 |
|
| 22 |
864507 |
HOSE Thermostat to Heat Exchanger
|
1 |
|
| 23 |
8M2019988 |
HOSE Heat Exchanger to Poppet
|
1 |
superseded
|
| 24 |
863781 |
HOSE Distribution Housing to Fuel Cooler
|
1 |
|
| 25 |
864431 |
HOSE Heat Exchanger to Distribution Housing
|
1 |
|
| 26 |
8M2018850 |
HOSE Heat Exchanger to Circulation Pump
|
1 |
|
| 27 |
815504222 |
CLAMP Worm Gear (1.98 DIameter)
|
AR |
superseded
|
| 28 |
815504216 |
CLAMP Worm Gear (1.56 Diameter)
|
AR |
|
| 29 |
815504232 |
CLAMP Worm Gear (2.50 Diameter)
|
AR |
|
| 3 |
8M2019985 |
HOSE Poppet to Elbow, Top Starboard (No Rise)
|
1 |
|
| 3 |
8M2020616 |
HOSE Poppet to Elbow, Top Starboard (2 Inch Rise)
|
1 |
|
| 3 |
8M2020620 |
HOSE Poppet to Elbow, Top Starboard (4 Inch Rise)
|
1 |
|
| 3 |
8M2020623 |
HOSE Poppet to Elbow, Top Starboard (6 Inch Rise)
|
1 |
|
| 30 |
8M2012295 |
FITTING ASSEMBLY
|
1 |
superseded
|
| 31 |
815504228 |
CLAMP Worm Gear
|
AR |
|
| 32 |
815504212 |
CLAMP Worm Gear
|
AR |
|
| 33 |
815504224 |
CLAMP Worm Gear
|
AR |
|
| 4 |
8M2019986 |
HOSE Poppet to Elbow, Bottom Starboard (0,2,4 Inch Rise)
|
1 |
|
| 4 |
8M2020626 |
HOSE Poppet to Elbow, Bottom Starboard (6 Inch Rise)
|
1 |
|
| 5 |
8M2021810 |
HOSE (3 Inches) Poppet to Fitting
|
1 |
|
| 6 |
8M2003728 |
Y-FITTING
|
1 |
|
| 7 |
8M2004196 |
HOSE Cooler to Fitting
|
1 |
|
| 8 |
8M2020274 |
HOSE Fitting to Check Valve
|
1 |
|
| 9 |
864206A1 |
CHECK VALVE ASSEMBLY
|
1 |
|
| NS |
8079923 |
COVER Clamp
|
AR |
superseded
|
