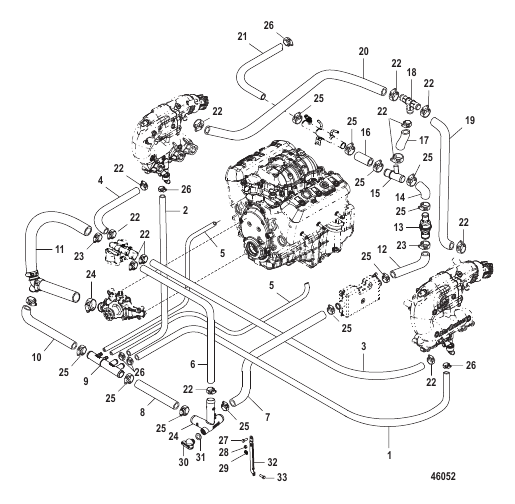

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M2021553 |
РУКАВ Port Manifold to Distribution Fitting HOSE Port Manifold to Distribution Fitting |
1 | |
| 10 | 8M2021515 |
РУКАВ Fitting to Fitting HOSE Fitting to Fitting |
1 | |
| 11 | 8M2018851 |
ШЛАНГ В СБОРЕ Thermostat Housing to Circulation Pump HOSE ASSEMBLY Thermostat Housing to Circulation Pump |
1 | |
| 12 | 8M2020273 |
РУКАВ Check Valve to Fuel Cooler HOSE Check Valve to Fuel Cooler |
1 | |
| 13 | 864206A1 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | |
| 14 | 8M2020274 |
РУКАВ Y-Fitting to Check Valve HOSE Y-Fitting to Check Valve |
1 | |
| 15 | 8M2003728 |
Y-ОБРАЗНЫЙ ФИТИНГ Y-FITTING |
1 | |
| 16 | 8M2004196 |
РУКАВ Cooler to Y-Fitting HOSE Cooler to Y-Fitting |
1 | |
| 17 | 8M2012165 |
РУКАВ Y-Fitting to T-Fitting HOSE Y-Fitting to T-Fitting |
1 | |
| 18 | 8M2014002 |
ФИТИНГ Тройник, красный Alpha FITTING Tee, Red Alpha |
1 | |
| 18 | 8M2014001 |
ФИТИНГ Тройник, зеленый Bravo FITTING Tee, Green Bravo |
1 | |
| 19 | 8M2012166 |
РУКАВ T Fitting to Port Elbow HOSE T Fitting to Port Elbow |
1 | |
| 2 | 4285069 |
РУКАВ (Общая длина 44.00") Starboard Manifold to Distribution Fitting (Cut to 22 Inches) HOSE (44.00 Inches Bulk) Starboard Manifold to Distribution Fitting (Cut to 22 Inches) |
1 | superseded |
| 20 | 8M2012167 |
РУКАВ T Fitting to Starboard Elbow HOSE T Fitting to Starboard Elbow |
1 | |
| 21 | 807661 |
РУКАВ Transom to Cooler Alpha HOSE Transom to Cooler Alpha |
1 | |
| 22 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
AR | |
| 23 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
AR | |
| 24 | 8M2020634 |
ФИТИНГ Тройник, специальный FITTING Tee, Special |
1 | disc. |
| 25 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) CLAMP Worm Gear (1.98 DIameter) |
AR | superseded |
| 26 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
AR | |
| 27 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 28 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
1 | |
| 29 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 3 | 8M2019570 |
РУКАВ Thermostat Housing to Port Manifold HOSE Thermostat Housing to Port Manifold |
1 | |
| 30 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | superseded |
| 31 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 32 | 8M2021026 |
КРОНШТЕЙН Tee Fitting BRACKET Tee Fitting |
1 | |
| 33 | 8175051 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
1 | |
| 4 | 8M2018584 |
РУКАВ Thermostat Housing to Starboard Manifold HOSE Thermostat Housing to Starboard Manifold |
1 | |
| 5 | 8623175 |
РУКАВ Cylinder Block Drain to Distribution Fitting (Port - 24 Inches, Starboard - 15 Inches) HOSE Cylinder Block Drain to Distribution Fitting (Port - 24 Inches, Starboard - 15 Inches) |
2 | superseded |
| 6 | 8M2018839 |
РУКАВ Thermostat Housing to Distribution Housing HOSE Thermostat Housing to Distribution Housing |
1 | superseded |
| 7 | 8M2021494 |
РУКАВ Fitting to Fuel Cooler HOSE Fitting to Fuel Cooler |
1 | |
| 8 | 8M2021739 |
РУКАВ (2.75") Distribution Housing to T-Fitting HOSE (2.75 Inches) Distribution Housing to T-Fitting |
1 | |
| 9 | 864621A1 |
ФИТИНГИ В СБОРЕ Distribution FITTING ASSEMBLY Distribution |
1 | |
| NS | 8079923 |
КРЫШКА Clamp COVER Clamp |
AR | superseded |
