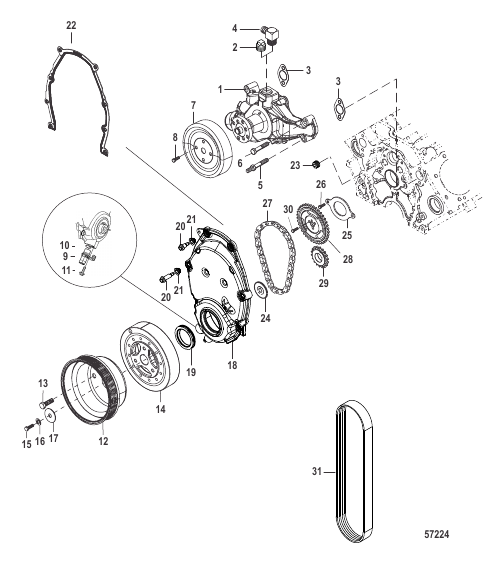

| # | Part Number | Description | Qty | Status |
|---|
| - |
807756A02 |
GASKET SET Engine Overhaul
|
1 |
|
| - |
879150A31 |
LONG BLOCK (4.3L)
|
1 |
disc.
|
| 1 |
879194401 |
PUMP ASSEMBLY
|
1 |
superseded
|
| 10 |
885192 |
O-RING
|
1 |
|
| 11 |
884018001 |
SCREW
|
1 |
|
| 12 |
807730T |
PULLEY Crankshaft
|
1 |
|
| 13 |
34352 |
SCREW (.375-24 x .875)
|
3 |
|
| 14 |
888776T |
HARMONIC BALANCER
|
1 |
|
| 15 |
8M2021674 |
SCREW (.437-20 x 2.50)
|
1 |
|
| 16 |
39131 |
LOCKWASHER (.437)
|
1 |
|
| 17 |
71458 |
WASHER
|
1 |
|
| 18 |
879194362 |
COVER ASSEMBLY Timing
|
1 |
disc.
|
| 19 |
879194365 |
SEAL Oil
|
1 |
superseded
|
| 2 |
879194370 |
PLUG Pipe (Standard Cooling)
|
1 |
disc.
|
| 20 |
879194369 |
BOLT Timing Cover
|
6 |
|
| 21 |
888782 |
GROMMET Timing Cover
|
6 |
|
| 22 |
8M0069696 |
GASKET
|
1 |
|
| 23 |
816565 |
PLUG Cup (.468)
|
1 |
|
| 24 |
879194344 |
RELUCTOR WHEEL
|
1 |
|
| 25 |
824333 |
RETAINER Camshaft
|
1 |
|
| 26 |
824334 |
SCREW (.250-20 x .500)
|
2 |
|
| 27 |
8M0050619 |
TIMING CHAIN SET Chain and Sprockets
|
1 |
|
| 28 |
NSS |
NOT SOLD SEPARATE Camshaft Sprocket
|
1 |
|
| 29 |
NSS |
NOT SOLD SEPARATE Crankshaft Sprocket
|
1 |
|
| 3 |
879194367 |
GASKET Water Pump
|
2 |
|
| 30 |
824329 |
SCREW (.312-18 x .750)
|
3 |
disc.
|
| 31 |
8M2018590 |
BELT Serpentine (Alpha-Standard Cooling)
|
1 |
disc.
|
| 31 |
8M2018984 |
BELT Serpentine (Bravo-Standard Cooling)
|
1 |
|
| 31 |
879288Q20 |
BELT Serpentine (Closed Cooling)
|
1 |
disc.
|
| 4 |
860346 |
FITTING Elbow (90 Degree) (.750) (Closed Cooling)
|
1 |
|
| 5 |
35342 |
STUD (.312-24/.375-16 x 2.5625)
|
2 |
superseded
|
| 6 |
32132 |
SCREW (.375-16 x 1.750)
|
2 |
|
| 6 |
47688 |
SCREW (.375-16 x 2.750)
|
1 |
|
| 7 |
807729T |
PULLEY Standard Cooling
|
1 |
superseded
|
| 7 |
865047T |
PULLEY Closed Cooling
|
1 |
|
| 8 |
47277 |
SCREW (.312-24 x .750)
|
4 |
|
| 9 |
879194363 |
SENSOR ASSEMBLY Crankshaft Position
|
1 |
|
