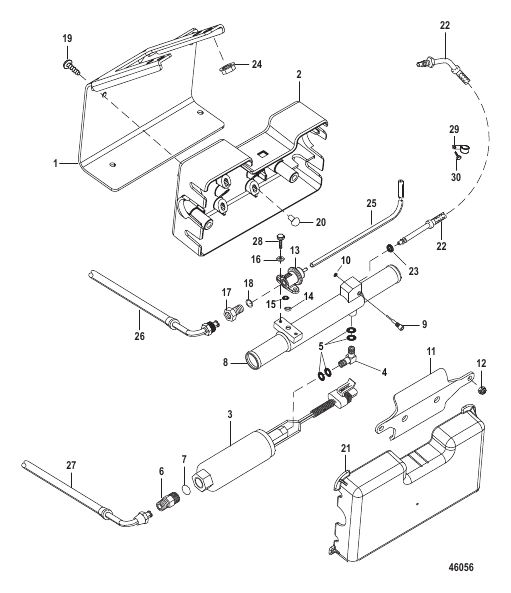

Fuel Pump And Fuel Cooler
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 807756A02 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 863422T1 |
КРОНШТЕЙН Fuel Cooler (Power Assisted Steering) BRACKET Fuel Cooler (Power Assisted Steering) |
1 | |
| 10 | 861414 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 11 | 807979T |
КРОНШТЕЙН BRACKET |
1 | |
| 12 | 29598 |
ГАЙКА (0.250-28), нержавеющая сталь NUT (.250-28) Stainless Steel |
2 | |
| 13 | 861126A1 |
КОМПЛЕКТ РЕГУЛЯТОРА (43 фунт. на кв. дюйм) REGULATOR KIT (43 PSI) |
1 | |
| 14 | 805406 |
ФИЛЬТР FILTER |
1 | |
| 15 | 805531 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.476 x 0.075) O-RING (.476 x .075) |
1 | |
| 16 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
2 | |
| 17 | 808002A1 |
КОМПЛЕКТ ФИТИНГОВ FITTING KIT |
1 | |
| 18 | 36533 |
ШАЙБА (0.328 x 0.562 x 0.0312), медь WASHER (.328 x .562 x .0312) Copper |
1 | |
| 19 | 808005 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
4 | |
| 2 | 807685T |
РАЗЪЕДИНИТЕЛЬ Base INSULATOR Base |
1 | |
| 20 | 269011 |
УПОР Резина BUMPER Rubber |
8 | |
| 21 | 807930T01 |
РАЗЪЕДИНИТЕЛЬ Cover INSULATOR Cover |
1 | |
| 22 | 8M2015351 |
ТРУБОПРОВОД Топливо Fuel Cooler To Fuel Rail LINE Fuel Fuel Cooler To Fuel Rail |
1 | |
| 23 | 863151 |
УПЛОТНЕНИЕ Счетверенное кольцо SEAL Quad Ring |
1 | superseded |
| 24 | 860069 |
ГАЙКА (.375-16) NUT (.375-16) |
2 | |
| 25 | 80617382 |
РУКАВ (Общая длина 58.00") Fuel Pressure Regulator To Intake Manifold (Cut to Length) HOSE (58.00 Inches Bulk) Fuel Pressure Regulator To Intake Manifold (Cut to Length) |
1 | superseded |
| 26 | 8M0045997 |
ТРУБОПРОВОД Топливо Fuel Pressure Regulator To Fuel Filter (Power Assisted Steering) LINE Fuel Fuel Pressure Regulator To Fuel Filter (Power Assisted Steering) |
1 | |
| 27 | 8M0046000 |
ТРУБОПРОВОД Топливо Fuel Filter To Fuel Pump LINE Fuel Fuel Filter To Fuel Pump |
1 | |
| 28 | 852368 |
ВИНТ (№10-24 x 0.750) SCREW (#10-24 x .750) |
2 | |
| 29 | 8M2021647 |
ЗАЖИМ Fuel line to Port Head CLAMP Fuel line to Port Head |
1 | |
| 3 | 861156A03 |
КОМПЛЕКТ НАСОСА / ОХЛАДИТЕЛЯ Топливо PUMP/COOLER KIT Fuel |
1 | superseded |
| 30 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
1 | |
| 4 | 807783A1 |
ФИТИНГИ В СБОРЕ 90 градусов FITTING ASSEMBLY 90 Degree |
1 | |
| 5 | 805063 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
4 | superseded |
| 6 | 808001A1 |
ФИТИНГИ В СБОРЕ FITTING ASSEMBLY |
1 | |
| 7 | 805062 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.530 x 0.082) O-RING (.530 x .082) |
1 | |
| 8 | 865356T |
ОХЛАДИТЕЛЬ Fuel COOLER Fuel |
1 | superseded |
| 9 | 866114 |
ВИНТ (0.250-28), специальный SCREW (.250-28) Special |
1 |
