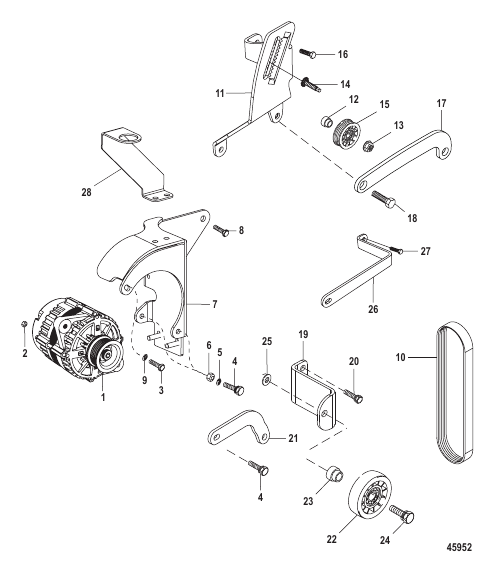

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863077T |
ГЕНЕРАТОР В СБОРЕ Черный 65 Amp - With 50mm Pulley (Non Serviceable) ALTERNATOR ASSEMBLY Black 65 Amp - With 50mm Pulley (Non Serviceable) |
1 | |
| 10 | 8M2018590 |
РЕМЕНЬ Поликлиновый (Alpha-Standard Cooling) BELT Serpentine (Alpha-Standard Cooling) |
1 | disc. |
| 10 | 8M2018984 |
РЕМЕНЬ Поликлиновый (Bravo-Standard Cooling) BELT Serpentine (Bravo-Standard Cooling) |
1 | |
| 10 | 879288Q20 |
РЕМЕНЬ Поликлиновый (Closed Cooling) BELT Serpentine (Closed Cooling) |
1 | disc. |
| 11 | 8M0053838 |
КРОНШТЕЙН Регулировка промежуточной шестерни BRACKET Idler Adjusting |
1 | |
| 12 | 865193 |
ВТУЛКА BUSHING |
1 | |
| 13 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием NUT (.437-20) Brass/Nickel Plated |
1 | |
| 14 | 8183812 |
ШПИЛЬКА ШЕСТЕРНИ (.437-20), нержавеющая сталь PINION STUD (.437-20) Stainless Steel |
1 | superseded |
| 15 | 864625T |
ШКИВ (4.25 Inch Diameter) PULLEY (4.25 Inch Diameter) |
1 | |
| 16 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 17 | 8M2021996 |
КРОНШТЕЙН Idler to Power Steering Pump BRACKET Idler to Power Steering Pump |
1 | |
| 18 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
1 | |
| 19 | 864456T |
КРОНШТЕЙН Alternator Brace (Bravo)(Alpha - Closed Cooling) BRACKET Alternator Brace (Bravo)(Alpha - Closed Cooling) |
1 | |
| 2 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 20 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
1 | |
| 21 | 8M2019957 |
КРОНШТЕЙН Alternator to Idler (Bravo)(Alpha - Closed Cooling) BRACKET Alternator to Idler (Bravo)(Alpha - Closed Cooling) |
1 | |
| 22 | 865598 |
ШКИВ (Bravo)(Alpha - Closed Cooling) PULLEY (Bravo)(Alpha - Closed Cooling) |
1 | superseded |
| 23 | 865193 |
ВТУЛКА (Bravo)(Alpha - Closed Cooling) BUSHING (Bravo)(Alpha - Closed Cooling) |
1 | |
| 24 | 56393 |
ВИНТ (0.437-20 x 1.75) (Bravo)(Alpha - Closed Cooling) SCREW (.437-20 x 1.75) (Bravo)(Alpha - Closed Cooling) |
1 | |
| 25 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием (Bravo)(Alpha - Closed Cooling) NUT (.437-20) Brass/Nickel Plated (Bravo)(Alpha - Closed Cooling) |
1 | |
| 26 | 8M2019972 |
КРОНШТЕЙН Генератор (Alpha - Standard Cooling) BRACKET Alternator (Alpha - Standard Cooling) |
1 | |
| 27 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 28 | 8M2021334 |
КРОНШТЕЙН Flush Valve BRACKET Flush Valve |
1 | |
| 3 | 40001134 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
1 | |
| 4 | 828213 |
ВИНТ Шестигранный фланец (0.312-18 x 1.500) SCREW (.312-18 x 1.500) Hex Flange |
2 | |
| 5 | 57792 |
ШАЙБА WASHER |
2 | |
| 6 | 26484 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 7 | 8M0053836 |
КРОНШТЕЙН Генератор BRACKET Alternator |
1 | |
| 8 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | |
| 9 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
1 |
