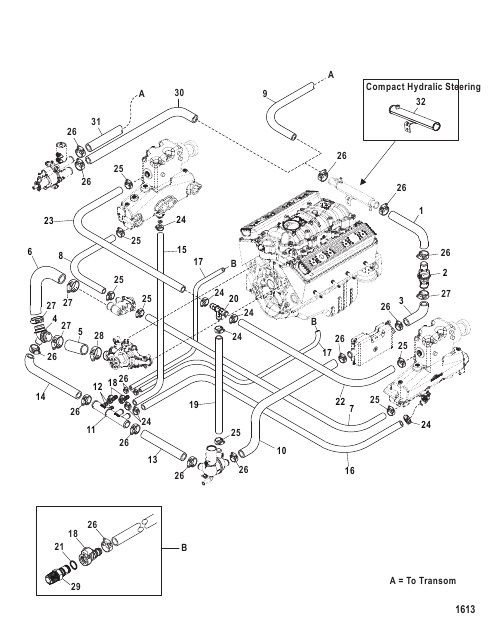

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863489 |
РУКАВ Power Steering Cooler To Check Valve HOSE Power Steering Cooler To Check Valve |
1 | |
| 10 | 863670 |
РУКАВ Fuel Cooler To Water Distribution Housing (With Power Steering) HOSE Fuel Cooler To Water Distribution Housing (With Power Steering) |
1 | |
| 10 | 863937 |
РУКАВ Fuel Cooler To Water Distribution Housing (With Out Power Steering) HOSE Fuel Cooler To Water Distribution Housing (With Out Power Steering) |
1 | |
| 11 | 863760 |
ФИТИНГ Lower Distribution FITTING Lower Distribution |
1 | disc. |
| 12 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
2 | |
| 13 | 863490 |
РУКАВ Water Drain Accumulator To Distribution Fitting HOSE Water Drain Accumulator To Distribution Fitting |
1 | |
| 14 | 863491 |
РУКАВ Distribution Fitting To "Y" Fitting HOSE Distribution Fitting To "Y" Fitting |
1 | |
| 15 | 4285069 |
РУКАВ (Общая длина 44.00") Starboard Manifold To Distribution Fitting (Cut To 22.00 Inch Length) HOSE (44.00 Inches Bulk) Starboard Manifold To Distribution Fitting (Cut To 22.00 Inch Length) |
1 | superseded |
| 16 | 864258 |
РУКАВ Port Manifold To Distribution Fitting HOSE Port Manifold To Distribution Fitting |
1 | superseded |
| 17 | 8623174 |
РУКАВ Cylinder Block Drain To Distribution Fitting (Port-23 Inch) (Starboard-17.00 Inch) HOSE Cylinder Block Drain To Distribution Fitting (Port-23 Inch) (Starboard-17.00 Inch) |
2 | superseded |
| 18 | 862225 |
ФИТИНГ Pushlock FITTING Pushlock |
4 | |
| 19 | 863465 |
РУКАВ Drain Accumulator To Tee Fitting HOSE Drain Accumulator To Tee Fitting |
1 | |
| 2 | 864206A1 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | |
| 20 | 863464 |
ФИТИНГ Tee (Bravo Only) FITTING Tee (Bravo Only) |
1 | |
| 20 | 863464A1 |
ФИТИНГИ В СБОРЕ (Alpha Only) FITTING ASSEMBLY (Alpha Only) |
1 | superseded |
| 21 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
2 | |
| 22 | 863496 |
РУКАВ Т-образный фитинг к колену по левому борту HOSE T Fitting To Port Elbow |
1 | disc. |
| 23 | 863828 |
РУКАВ Т-образный фитинг к колену по правому борту HOSE T Fitting To Starboard Elbow |
1 | disc. |
| 24 | 815504212 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
2 | |
| 25 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
AR | |
| 26 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) Hose CLAMP Worm Gear (1.98 DIameter) Hose |
2 | superseded |
| 27 | 815504228 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
1 | |
| 28 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) Hose CLAMP Worm Gear (2.50 Diameter) Hose |
AR | |
| 29 | 862603 |
ФИТИНГ Male Quick Connector (Threaded) FITTING Male Quick Connector (Threaded) |
2 | superseded |
| 3 | 863623 |
РУКАВ Check Valve To Fuel Cooler HOSE Check Valve To Fuel Cooler |
1 | |
| 30 | 863611 |
РУКАВ Sea Water Pump To Power Steering Cooler HOSE Sea Water Pump To Power Steering Cooler |
1 | |
| 31 | 86334364 |
РУКАВ Sea Water Pump To Water Pick Up HOSE Sea Water Pump To Water Pick Up |
1 | superseded |
| 32 | 863841T |
ТРУБА Вода Brass (Compact Hydraulic Steering) TUBE Water Brass (Compact Hydraulic Steering) |
1 | |
| 4 | 863455 |
ФИТИНГ Y FITTING Y |
1 | superseded |
| 5 | 862274 |
РУКАВ Lower Circulation Pump HOSE Lower Circulation Pump |
1 | disc. |
| 6 | 863453 |
РУКАВ Y-образный фитинг к циркуляционному насосу HOSE Y Fitting To Circulating Pump |
1 | superseded |
| 7 | 863458 |
РУКАВ Thermostat Housing To Port Manifold HOSE Thermostat Housing To Port Manifold |
1 | |
| 8 | 863459 |
РУКАВ Thermostat Housing To Starboard Manifold HOSE Thermostat Housing To Starboard Manifold |
1 | |
| 9 | 807661 |
РУКАВ Transom To Power Steering Cooler HOSE Transom To Power Steering Cooler |
1 | |
| NS | 864327 |
ВТУЛКА Orifice (Alpha Only) BUSHING Orifice (Alpha Only) |
1 | disc. |
| NS | 864353 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (Alpha Only) O-RING (Alpha Only) |
1 | disc. |
