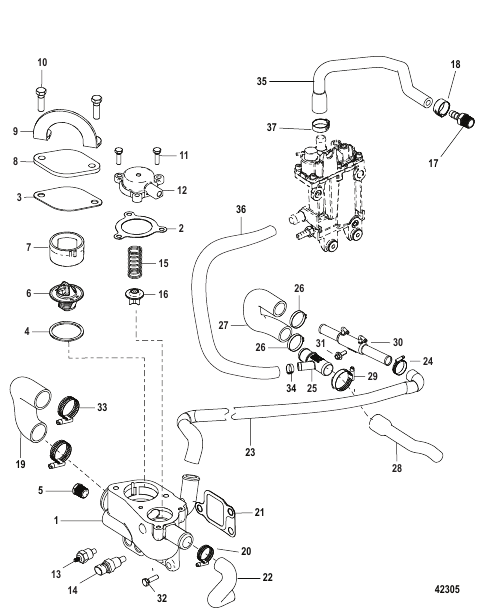

Standard Cooling System Raw Water with Power Steering
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 879288T11 |
КОРПУС В СБОРЕ Thermostat HOUSING ASSEMBLY Thermostat |
1 | discontinued |
| 10 | 37612 |
ВИНТ (0.375-16 x 1.250) SCREW (.375-16 x 1.250) |
2 | |
| 11 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
3 | |
| 12 | 8M8020473 |
ПРОБКА Термостат CAP Thermostat |
1 | superseded |
| 13 | 806490T |
ДАТЧИК SENDER |
1 | |
| 14 | 805218T |
ДАТЧИК SENSOR |
1 | |
| 15 | 42996 |
ПРУЖИНА (Нержавеющая сталь) SPRING (Stainless Steel) |
1 | |
| 16 | 8M2010186 |
ТАРЕЛЬЧАТЫЙ КЛАПАН POPPET |
1 | |
| 17 | 70834 |
СОЕДИНИТЕЛЬ (0.375-18), прямой – латунь CONNECTOR (.375-18) Straight - Brass |
1 | |
| 18 | 8M2001486 |
ЗАЖИМ Червячная передача (16-27 мм) CLAMP Worm Gear (16-27 mm) |
1 | superseded |
| 19 | 96879 |
РУКАВ HOSE |
1 | superseded |
| 2 | 8M2010475 |
ПРОКЛАДКА Крышка тарельчатого клапана GASKET Poppet Cover |
1 | |
| 20 | 8M2001487 |
ЗАЖИМ (25-40 мм) CLAMP (25 - 40 mm) |
1 | superseded |
| 21 | 8M2004290 |
ПРОКЛАДКА Thermostat Housing GASKET Thermostat Housing |
1 | |
| 22 | 8M2004355 |
РУКАВ Housing to Manifold HOSE Housing to Manifold |
1 | |
| 23 | 8M2004352 |
РУКАВ Cooler to Thermostat HOSE Cooler to Thermostat |
1 | |
| 23 | 861783 |
РУКАВ Cooler Bypass Without Power Steering HOSE Cooler Bypass Without Power Steering |
1 | |
| 24 | 8M2001489 |
ЗАЖИМ (32-50 мм) CLAMP (32 - 50 mm) |
1 | superseded |
| 24 | 806616 |
ЗАЖИМ Without Power Steering CLAMP Without Power Steering |
1 | |
| 25 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга Drain FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb Drain |
1 | |
| 26 | 888988007 |
ЗАЖИМ (42.5 мм) CLAMP (42.5 mm) |
2 | |
| 27 | 8M2001715 |
РУКАВ Bypass tee to cooler HOSE Bypass tee to cooler |
1 | |
| 28 | 8M2001714 |
РУКАВ To Transom HOSE To Transom |
1 | |
| 29 | 8M2001489 |
ЗАЖИМ (32-50 мм) CLAMP (32 - 50 mm) |
1 | superseded |
| 3 | 331792 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 30 | 8M0063119 |
ОХЛАДИТЕЛЬ Power Steering COOLER Power Steering |
1 | |
| 31 | 816585 |
ВИНТ (0.312-18 x 0.875) SCREW (.312-18 x .875) |
1 | |
| 32 | 90059 |
ВИНТ (0.375-16 x 0.875) With Power Steering SCREW (.375-16 x .875) With Power Steering |
2 | |
| 32 | 90187 |
ВИНТ (0.375-16 x 1.250) With Power Steering SCREW (.375-16 x 1.250) With Power Steering |
1 | |
| 32 | 90059 |
ВИНТ (0.375-16 x 0.875) Without Power Steering SCREW (.375-16 x .875) Without Power Steering |
3 | |
| 33 | 8M2001491 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | superseded |
| 34 | 8M2000353 |
ЗАЖИМ CLAMP |
1 | |
| 35 | 8M2004468 |
РУКАВ To Exhaust Elbow HOSE To Exhaust Elbow |
1 | |
| 36 | 8M2001665 |
РУКАВ To Fitting HOSE To Fitting |
1 | |
| 37 | 8M2001485 |
ЗАЖИМ Червячная передача (12-20 мм) CLAMP Worm Gear (12 - 20 mm) |
1 | superseded |
| 4 | 806871 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 5 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
1 | superseded |
| 6 | 807252T2 |
ТЕРМОСТАТ 71 град. Цельсия (160 град. Фаренгейта) THERMOSTAT 71DegreeC (160 Degree F) |
1 | superseded |
| 7 | 806922 |
РУКАВ SLEEVE |
1 | superseded |
| 8 | 17494A1 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
1 | |
| 9 | 12552 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| NS | 772234 |
НАКЛАДКА PAD |
1 | discontinued |
