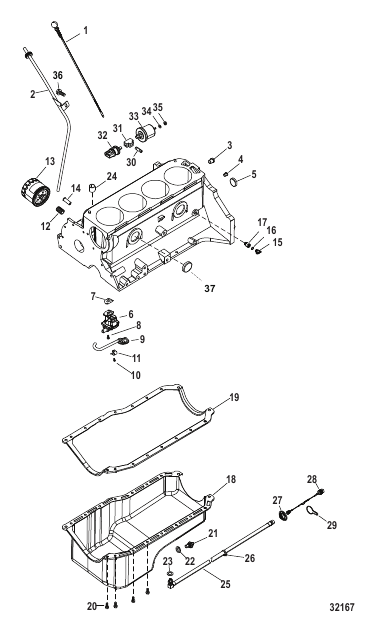

| # | Part Number | Description | Qty | Status |
|---|
| - |
810846A06 |
GASKET SET Overhaul
|
1 |
|
| - |
864626A02 |
MARINE LONG BLOCK
|
1 |
disc.
|
| - |
809825 |
RTV SILICONE (3 Ounce Tube) Metallic Blue
|
1 |
|
| - |
342271 |
SEALING COMPOUND (16 Ounce)
|
1 |
superseded
|
| 1 |
879288T07 |
GAUGE Dipstick, Knob Handle
|
1 |
|
| 10 |
35366 |
SCREW
|
1 |
superseded
|
| 11 |
NSS |
NOT SOLD SEPARATE Support, Oil Pump
|
1 |
|
| 12 |
805632 |
CONNECTOR
|
1 |
|
| 13 |
866340Q03 |
FILTER Oil
|
1 |
|
| 13 |
866340K01 |
FILTER Oil - Mercury Brand
|
1 |
|
| 14 |
34543 |
VALVE
|
1 |
|
| 15 |
806608A02 |
PLUG ASSEMBLY (.500-13) Blue
|
1 |
superseded
|
| 16 |
8M2000926 |
SEAL
|
1 |
superseded
|
| 17 |
860088 |
BUSHING
|
1 |
superseded
|
| 18 |
810845T |
PAN Oil
|
1 |
superseded
|
| 19 |
810846T |
GASKET SET
|
1 |
|
| 2 |
879288T08 |
TUBE ASSEMBLY Dipstick
|
1 |
|
| 20 |
34500 |
SCREW (.312-18 x .625)
|
2 |
|
| 20 |
72607 |
SCREW (.250-20 x .375)
|
14 |
superseded
|
| 21 |
49956 |
SCREW Drain
|
1 |
|
| 22 |
49955 |
GASKET Drain
|
1 |
superseded
|
| 23 |
49955 |
GASKET
|
1 |
superseded
|
| 24 |
NSS |
NOT SOLD SEPARATE Bearing
|
1 |
|
| 25 |
865277 |
HOSE Oil Drain
|
1 |
|
| 26 |
863481 |
CLAMP
|
1 |
|
| 27 |
862777 |
FLANGE Drain
|
1 |
|
| 28 |
862827 |
TETHER ASSEMBLY Drain Plug
|
1 |
|
| 29 |
805524 |
CLIP
|
1 |
|
| 3 |
34487 |
PLUG (.375-18 x .42)
|
2 |
superseded
|
| 30 |
38992 |
FITTING
|
1 |
|
| 31 |
52930 |
FITTING
|
1 |
|
| 32 |
805605A1 |
SWITCH ASSEMBLY
|
1 |
|
| 33 |
815425T |
SENDER ASSEMBLY
|
1 |
superseded
|
| 34 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
1 |
|
| 35 |
68219 |
NUT (#10-32) Stainless Steel
|
1 |
|
| 36 |
98253 |
SCREW (.250-20 x .500)
|
1 |
|
| 37 |
34270 |
EXPANSION PLUG (1.625)
|
2 |
|
| 4 |
37531 |
PLUG
|
1 |
disc.
|
| 5 |
72640 |
PLUG
|
1 |
|
| 6 |
36405 |
PUMP ASSEMBLY Oil
|
1 |
|
| 7 |
34460 |
GASKET
|
1 |
disc.
|
| 8 |
845942 |
SCREW (.312-18 x .750)
|
2 |
superseded
|
| 9 |
52146 |
SCREEN Oil Pump Pickup
|
1 |
|
