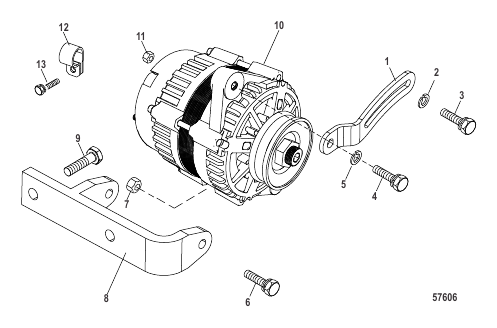

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M2001638 |
СКОБА Alternator Adjusting BRACE Alternator Adjusting |
1 | |
| 10 | 862030T01 |
ГЕНЕРАТОР В СБОРЕ ALTERNATOR ASSEMBLY |
1 | |
| 11 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 12 | 78945 |
J-ОБРАЗНЫЙ ФИКСАТОР Harness Support J CLAMP Harness Support |
1 | |
| 13 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
1 | |
| 2 | 40001134 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
1 | |
| 3 | 26168 |
ШАЙБА WASHER |
1 | |
| 4 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
1 | |
| 5 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
1 | |
| 6 | 828213 |
ВИНТ Шестигранный фланец (0.312-18 x 1.500) SCREW (.312-18 x 1.500) Hex Flange |
2 | |
| 7 | 26484 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 8 | 861734 |
КРОНШТЕЙН Alternator BRACKET Alternator |
1 | |
| 9 | 865982005 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 |
