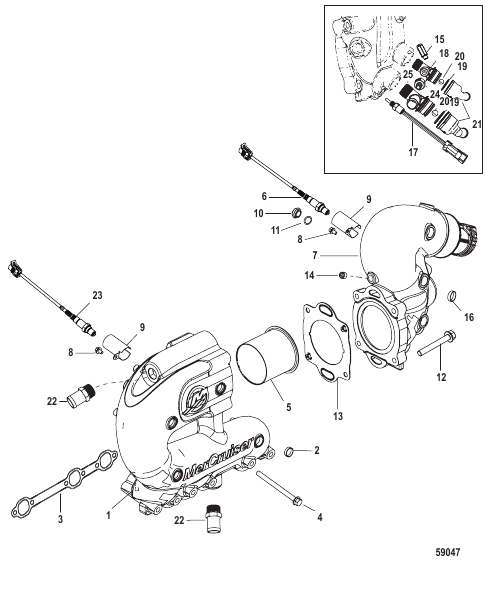

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0103774 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп Port MANIFOLD ASSEMBLY Exhaust Port |
1 | |
| 1 | 8M0103773 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп Starboard MANIFOLD ASSEMBLY Exhaust Starboard |
1 | |
| 10 | 8M0082363 |
ПРОБКА Included in Elbow Assemblies Non-EC PLUG Included in Elbow Assemblies Non-EC |
2 | |
| 11 | 8M0097283 |
ШАЙБА Медь Included in Elbow Assemblies Non-EC WASHER Copper Included in Elbow Assemblies Non-EC |
2 | |
| 12 | 668631 |
ВИНТ (0.375-16 x 2.500) SCREW (.375-16 x 2.500) |
4 | |
| 13 | 8M2004606 |
ПРОКЛАДКА GASKET |
2 | |
| 14 | 73379 |
ПРОБКА (.250-18) Included in Elbow Assemblies PLUG (.250-18) Included in Elbow Assemblies |
AR | superseded |
| 15 | 8M0103408 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 16 | 864689 |
ПРОБКА Расширитель Included in Elbow Assemblies PLUG Expansion Included in Elbow Assemblies |
4 | |
| 17 | 885342002 |
ДАТЧИК В СБОРЕ SENSOR ASSEMBLY |
2 | superseded |
| 18 | 8M0092916 |
СЛИВНОЙ ФИТИНГ DRAIN FITTING |
2 | |
| 19 | 864701 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.112 x 0.103) O-RING (1.112 x .103) |
4 | |
| 2 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
10 | |
| 20 | 863129 |
ШАРИК BALL |
4 | |
| 21 | 862994T |
ФИТИНГ FITTING |
4 | |
| 22 | 866725 |
ФИТИНГ Прямой (0.750-14) FITTING Straight (.750-14) |
4 | |
| 23 | 8M0095468 |
ДАТЧИК O2 SENSOR O2 |
2 | superseded |
| 24 | 8M0103649 |
ФИТИНГ FITTING |
2 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Fitting NOT SOLD SEPARATE Fitting |
2 | |
| 3 | 8M2000819 |
ПРОКЛАДКА GASKET |
2 | |
| 4 | 8M2000229 |
ВИНТ (0.375-16 x 4.75) SCREW (.375-16 x 4.75) |
12 | superseded |
| 5 | 8M0104918 |
КАТАЛИЗАТОР EC CATALYST EC |
2 | superseded |
| 6 | 8M2003959 |
ДАТЧИК Кислород EC SENSOR Oxygen EC |
2 | |
| 7 | 8M0104207 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Без подъема Port ELBOW ASSEMBLY No Rise Port |
1 | superseded |
| 7 | 8M0104208 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Без подъема Starboard ELBOW ASSEMBLY No Rise Starboard |
1 | superseded |
| 7 | 8M0104209 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Подъемный патрубок на 2" (Includes Port & Starboard) ELBOW ASSEMBLY 2 Inch Riser (Includes Port & Starboard) |
1 | superseded |
| 7 | 8M0104210 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Подъемный патрубок на 4" (Includes Port & Starboard) ELBOW ASSEMBLY 4 Inch Riser (Includes Port & Starboard) |
1 | superseded |
| 7 | 8M0104211 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Подъемный патрубок на 6" (Includes Port & Starboard) ELBOW ASSEMBLY 6 Inch Riser (Includes Port & Starboard) |
1 | superseded |
| 8 | 8M2007128 |
ВИНТ Шестигранный фланец (1/4-20) Included in 6 Inch Elbow Assembly 6 Inch EC SCREW (1/4-20) Hex Flange Included in 6 Inch Elbow Assembly 6 Inch EC |
4 | |
| 8 | 8M2007128 |
ВИНТ Шестигранный фланец (1/4-20) Included in 6 Inch Elbow Assembly 6 Inch Non-EC SCREW (1/4-20) Hex Flange Included in 6 Inch Elbow Assembly 6 Inch Non-EC |
2 | |
| 9 | 8M2004597 |
КРОНШТЕЙН Крышка Included in 6 Inch Elbow Assembly 6 Inch EC BRACKET Cover Included in 6 Inch Elbow Assembly 6 Inch EC |
4 | |
| 9 | 8M2004597 |
КРОНШТЕЙН Крышка Included in 6 Inch Elbow Assembly 6 Inch Non-EC BRACKET Cover Included in 6 Inch Elbow Assembly 6 Inch Non-EC |
2 | |
| NS | 863786A1 |
ФИТИНГИ В СБОРЕ Also Contains 19, 20, and 21 FITTING ASSEMBLY Also Contains 19, 20, and 21 |
2 |
