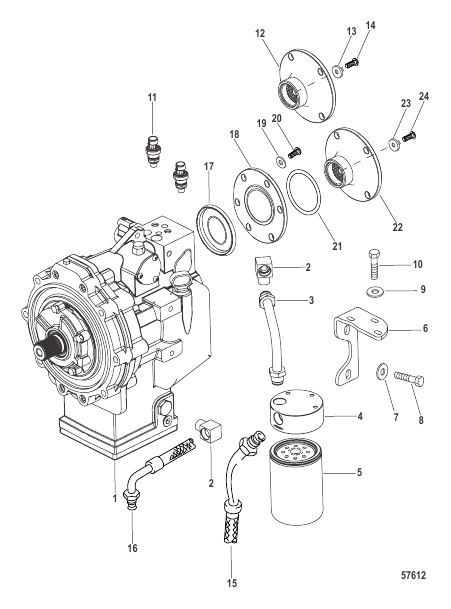

Transmission Driveline
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0093625 |
Комплект фланцевой опоры [0M971885] & Up Flange Support Kit [0M971885] & Up |
1 | |
| 1 | 8M0074368 |
ТРАНСМИССИЯ Driveline TRANSMISSION Driveline |
1 | superseded |
| 10 | 37562 |
ВИНТ (0.312-18 x 1.00), нержавеющая сталь SCREW (.312-18 x 1.00) Stainless Steel |
3 | |
| 11 | 8M0007568 |
ДАТЧИК 500 фунт/кв. дюйм TRANSDUCER 500 PSI |
2 | |
| 12 | 8M0047040 |
КОМПЛЕКТ ФЛАНЦА Without Flange Support FLANGE KIT Without Flange Support |
1 | |
| 13 | 8M0048362 |
ШАЙБА Направляющая Without Flange Support WASHER Pilot Without Flange Support |
1 | |
| 14 | 8M0048363 |
ВИНТ (1/2-20) Without Flange Support SCREW (1/2-20) Without Flange Support |
1 | |
| 15 | 8M0077576 |
РУКАВ Supply HOSE Supply |
1 | |
| 16 | 8M0077577 |
РУКАВ Return HOSE Return |
1 | |
| 17 | 8M0070196 |
ПОДШИПНИК Игольчатый ролик With Flange Support BEARING Needle Roller With Flange Support |
1 | |
| 18 | 8M0094359 |
КОРПУС ОПОРЫ With Flange Support SUPPORT HOUSING With Flange Support |
1 | |
| 19 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь With Flange Support WASHER (.390 x .625 x .062) Stainless Steel With Flange Support |
6 | |
| 2 | 63825 |
КОЛЕНЧАТЫЙ ELBOW |
2 | |
| 20 | 58640 |
ВИНТ (0.375-16 x 1.25) With Flange Support SCREW (.375-16 x 1.25) With Flange Support |
6 | superseded |
| 21 | 57413 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3.987 x 0.103) With Flange Support O-RING (3.987 x .103) With Flange Support |
1 | |
| 22 | 8M0094360 |
ФЛАНЕЦ With Flange Support FLANGE With Flange Support |
1 | |
| 23 | 8M0048362 |
ШАЙБА Направляющая With Flange Support WASHER Pilot With Flange Support |
1 | |
| 24 | 8M0048363 |
ВИНТ (1/2-20) With Flange Support SCREW (1/2-20) With Flange Support |
1 | |
| 3 | 8M0047656 |
ТРУБА Масло Oil Filter TUBE Oil Oil Filter |
1 | |
| 4 | 8M0047653 |
ПЕРЕХОДНИК ADAPTER |
1 | |
| 5 | 881126K01 |
ФИЛЬТР Масло FILTER Oil |
1 | |
| 6 | 8M0047654 |
КРОНШТЕЙН Mounting BRACKET Mounting |
1 | |
| 7 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
2 | |
| 8 | 99204 |
ВИНТ (0.437-14 x 1.00), нержавеющая сталь SCREW (.437-14 x 1.00) Stainless Steel |
2 | |
| 9 | F506186 |
ШАЙБА (0.340 x 0.734 x 0.105), нержавеющая сталь WASHER (.340 x .734 x .105) Stainless Steel |
3 | |
| NS | 847029A1 |
НАБОР ПРОКЛАДОК With Flange Support SHIM SET With Flange Support |
1 | |
| NS | 8M0070197 |
УПЛОТНЕНИЕ With Flange Support SEAL With Flange Support |
1 | |
| NS | 845750 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО With Flange Support O-RING With Flange Support |
1 | |
| NS | 69756 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.549 x 0.103) With Flange Support O-RING (.549 x .103) With Flange Support |
1 |
