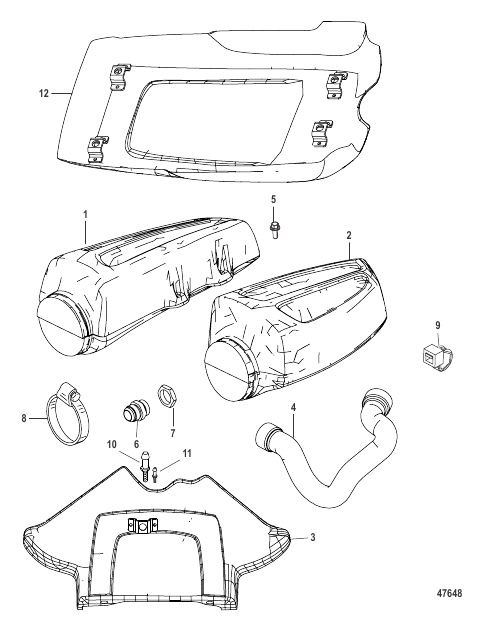

Air Intake Cover
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M8026070 |
КОМПЛЕКТ ОТДЕЛКИ Графитовое волокно Accessory DRESS KIT Carbon Fiber Accessory |
1 | |
| 1 | 8M0047506 |
ВПУСК В СБОРЕ Starboard INTAKE ASSEMBLY Starboard |
1 | |
| 10 | 8215832 |
ШТИФТ Специальный (1.5") Front Cover PIN Special (1.5 Inches) Front Cover |
1 | |
| 11 | 8M0052767 |
ШТИФТ Специальный Front Cover PIN Special Front Cover |
2 | |
| 12 | 8M0048023 |
КРЫШКА Верхняя, электрическая пластина [0M973230] & Below COVER Top, Electrical Plate [0M973230] & Below |
1 | |
| 12 | 8M0107447 |
КРЫШКА В СБОРЕ Silver 1550 [0M973231] & Up COVER ASSEMBLY Silver 1550 [0M973231] & Up |
1 | |
| 12 | 8M0107478 |
КРЫШКА В СБОРЕ Silver 1650 [0M973231] & Up COVER ASSEMBLY Silver 1650 [0M973231] & Up |
||
| 2 | 8M0047713 |
ВПУСК В СБОРЕ Port INTAKE ASSEMBLY Port |
1 | |
| 3 | 8M0048020 |
КРЫШКА Передний [0M973230] & Below COVER Front [0M973230] & Below |
1 | |
| 3 | 8M0110866 |
КРЫШКА В СБОРЕ Передний Silver [0M973231] & Up COVER ASSEMBLY Front Silver [0M973231] & Up |
1 | |
| 4 | 8M0048271 |
РУКАВ HOSE |
1 | |
| 5 | 88552512 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
6 | superseded |
| 6 | 8M0052472 |
ФИТИНГ FITTING |
1 | |
| 7 | 8M0052473 |
ГАЙКА NUT |
1 | |
| 8 | 815504280 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 9 | 850181 |
ЛЕНТОЧНЫЙ ХОМУТ (11.750") TIE STRAP (11.750 Inches) |
2 | |
| NS | 8M0082379 |
НАКЛЕЙКА QC4V DECAL QC4V |
1 | |
| NS | 90329 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | |
| NS | 8M0059268 |
НАБОР НАКЛЕЕК Верхняя крышка (QC4) [0M971884] & Below DECAL SET Top Cover (QC4) [0M971884] & Below |
1 | discontinued |
| NS | 8M0092026 |
НАБОР НАКЛЕЕК Верхняя крышка (QC4) [0M971885] THRU [0M973230] DECAL SET Top Cover (QC4) [0M971885] THRU [0M973230] |
1 | |
| NS | 8M0112724 |
НАБОР НАКЛЕЕК Верхняя крышка [0M973231] & Up DECAL SET Top Cover [0M973231] & Up |
1 |
