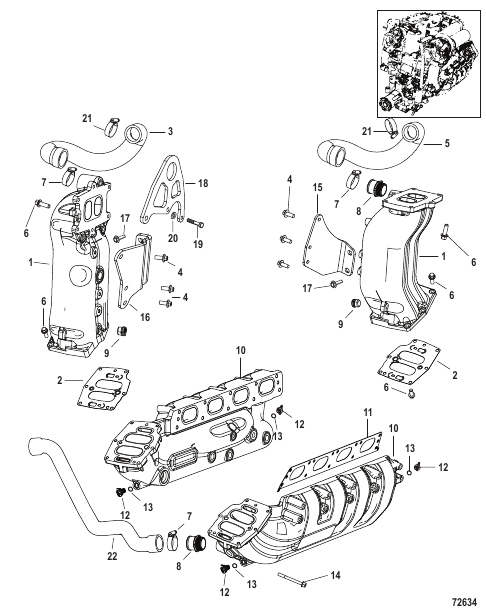

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0181358 |
ELBOW ASSEMBLY Exhaust Port ELBOW ASSEMBLY Exhaust Port |
1 | |
| 1 | 8M0181359 |
ELBOW ASSEMBLY Exhaust Starboard ELBOW ASSEMBLY Exhaust Starboard |
1 | |
| 10 | 8M0181361 |
EXHAUST MANIFOLD ASSEMBLY Port EXHAUST MANIFOLD ASSEMBLY Port |
1 | |
| 10 | 8M0181362 |
EXHAUST MANIFOLD ASSEMBLY Starboard EXHAUST MANIFOLD ASSEMBLY Starboard |
1 | |
| 11 | 8M0032724 |
ПРОКЛАДКА GASKET |
2 | |
| 12 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий Cooler to Manifold PLUG ASSEMBLY (.500-13) Blue Cooler to Manifold |
4 | superseded |
| 13 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
4 | |
| 14 | 8M0178601 |
SCREW SCREW |
20 | |
| 15 | 8M0178605 |
BRACKET Starboard Elbow BRACKET Starboard Elbow |
1 | |
| 16 | 8M0178606 |
BRACKET Port Elbow BRACKET Port Elbow |
1 | |
| 17 | 4010825 |
ВИНТ Шестигранный фланец (M10 x 25), нержавеющая сталь SCREW (M10 x 25) Hex Flange - Stainless Steel |
4 | |
| 18 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО ORD Lifting Kit 8M0077248 NOT SOLD SEPARATE ORD Lifting Kit 8M0077248 |
1 | |
| 19 | 8M0076906 |
ВИНТ (M8) SCREW (M8) |
3 | |
| 2 | 8M0178600 |
GASKET Manifold to Elbow GASKET Manifold to Elbow |
2 | |
| 20 | 856774 |
ШАЙБА (0.406 x 0.750 x 0.105), нержавеющая сталь WASHER (.406 x .750 x .105) Stainless Steel |
3 | superseded |
| 21 | 180766 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 22 | 8M0178604 |
HOSE Cooler to Manifold HOSE Cooler to Manifold |
1 | |
| 3 | 8M0178603 |
HOSE Elbow to Turbine, Port HOSE Elbow to Turbine, Port |
1 | |
| 4 | 8M0061279 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
6 | |
| 5 | 8M0045101 |
РУКАВ Manifold to Turbine, Starboard HOSE Manifold to Turbine, Starboard |
1 | |
| 6 | 4010725 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
AR | |
| 7 | 180767 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
AR | |
| 8 | 8M0178602 |
FITTING FITTING |
2 | |
| 9 | 8M0087447 |
ПРОБКА (10 ММ) Manifold to Elbow, Starboard PLUG (10MM) Manifold to Elbow, Starboard |
2 |
