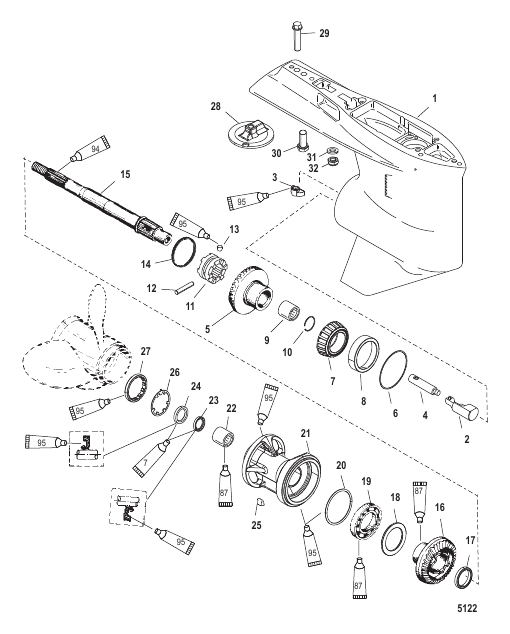

| # | Part Number | Description | Qty | Status |
|---|
| - |
9148T84 |
GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) Long- 1.87:1
|
1 |
|
| - |
9148T85 |
GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) X-Long - 1.87:1
|
1 |
|
| - |
NS |
NOT SHOWN See Accessory Guide-Propellers-For Appropriate Hardware. (Thrust Washers/Nuts)
|
1 |
|
| - |
89238A2 |
SEAL KIT
|
1 |
|
| - |
803491T1 |
FOLLOWER ASSEMBLY Clutch/Cam
|
1 |
|
| - |
803033T1 |
BEARING AND SEAL KIT Without Foward Bearing
|
1 |
|
| - |
803615T2 |
GEAR ASSEMBLY Pinion/Forward
|
1 |
|
| - |
814754A00 |
GASKET SET Engine
|
1 |
superseded
|
| 1 |
9148T93 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
856823 |
RING Retaining
|
1 |
|
| 11 |
859340T |
CLUTCH
|
1 |
|
| 12 |
30632 |
PIN Cross
|
1 |
superseded
|
| 13 |
828356 |
PIN Detent
|
1 |
|
| 14 |
30893 |
SPRING
|
1 |
|
| 15 |
94148 |
PROPELLER SHAFT
|
1 |
|
| 16 |
828175A1 |
GEAR ASSEMBLY Reverse - 15/28 1.87:1 Gear Ratio
|
1 |
|
| 17 |
824108 |
SPACER
|
1 |
|
| 18 |
681001 |
RING Thrust
|
1 |
|
| 19 |
88957T |
BEARING Ball
|
1 |
|
| 2 |
89594A1 |
FOLLOWER ASSEMBLY
|
1 |
|
| 20 |
31534 |
O-RING
|
1 |
superseded
|
| 21 |
43567T1 |
CARRIER ASSEMBLY Bearing
|
1 |
|
| 22 |
30956T |
BEARING Needle
|
1 |
|
| 23 |
14077 |
SEAL Oil Inside
|
1 |
|
| 24 |
76868 |
SEAL Outside
|
1 |
superseded
|
| 25 |
30281 |
KEY
|
1 |
|
| 26 |
79447 |
TAB WASHER
|
1 |
|
| 27 |
79448 |
RETAINER
|
1 |
superseded
|
| 28 |
76214Q5 |
ANODE KIT Aluminum-Quicksilver Branded
|
AR |
|
| 28 |
76214T5 |
ANODE KIT Aluminum- Mercury Branded
|
AR |
|
| 28 |
762145 |
ANODE Aluminum
|
1 |
superseded
|
| 28 |
76214A6 |
ANODE KIT Magneseum
|
AR |
|
| 29 |
806327 |
SCREW (.437-14 x 1.750)
|
1 |
superseded
|
| 3 |
789562 |
SHIFT CAM
|
1 |
|
| 30 |
65210 |
SCREW (.375-16 x 1.00)
|
1 |
|
| 31 |
45176 |
WASHER (.453 x .812 x .105) Stainless Steel
|
2 |
|
| 32 |
34933 |
NUT (.437-20) Stainless Steel
|
2 |
superseded
|
| 4 |
828287 |
ROD
|
1 |
|
| 5 |
803615T2 |
GEAR ASSEMBLY Pinion/Forward 1.87:1 Gear Ratio
|
1 |
|
| 6 |
44491A1 |
SHIM SET
|
AR |
disc.
|
| 7 |
30894A1 |
BEARING SET Cup And Cone
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 9 |
30895T |
BEARING Needle
|
1 |
|
