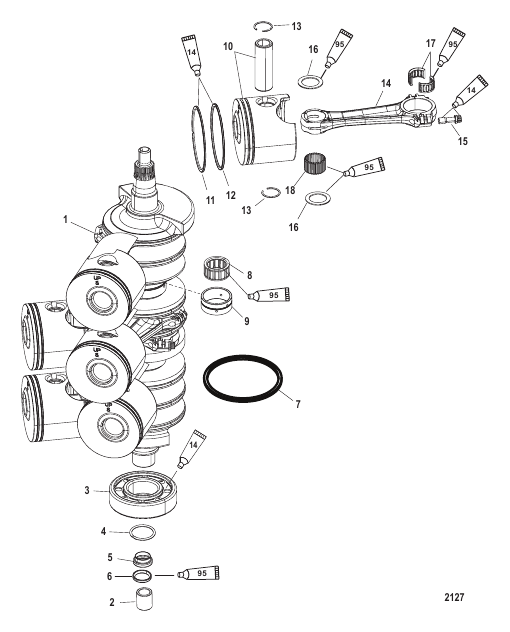

| # | Part Number | Description | Qty | Status |
|---|
| - |
814754A00 |
GASKET SET Engine
|
1 |
superseded
|
| 1 |
850690T2 |
CRANKSHAFT ASSEMBLY
|
1 |
|
| 10 |
859563T17 |
PISTON ASSEMBLY Starboard - Standard
|
3 |
|
| 10 |
859562T17 |
PISTON ASSEMBLY Port - Standard
|
3 |
|
| 10 |
859563A5 |
PISTON ASSEMBLY Starboard - .015 Oversize
|
AR |
|
| 10 |
859562A5 |
PISTON ASSEMBLY Port - .015 Oversize
|
AR |
disc.
|
| 11 |
877544A12 |
RING SET Standard
|
1 |
|
| 11 |
878106A12 |
RING SET Piston .015 Oversize
|
AR |
|
| 12 |
NSS |
NOT SOLD SEPARATE Piston Ring-Lower
|
1 |
|
| 13 |
8320811 |
LOCK RING
|
12 |
|
| 14 |
877853A04 |
CONNECTING ROD ASSEMBLY
|
6 |
|
| 15 |
763491 |
SCREW (.312-24 x .875)
|
12 |
|
| 16 |
877541 |
THRUST WASHER
|
12 |
superseded
|
| 17 |
17514A1 |
BEARING KIT
|
6 |
superseded
|
| 18 |
822553 |
BEARING Needle
|
204 |
superseded
|
| 2 |
78662 |
WEAR SLEEVE
|
1 |
|
| 3 |
67923T |
BEARING Ball Lower
|
1 |
|
| 4 |
67446 |
RING
|
1 |
|
| 5 |
54196A6 |
CARRIER ASSEMBLY
|
1 |
|
| 6 |
65800 |
PACKING
|
1 |
|
| 7 |
67377 |
RING Sealing
|
7 |
superseded
|
| 8 |
16756A6 |
BEARING KIT
|
2 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Race
|
2 |
|
