| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0047660 |

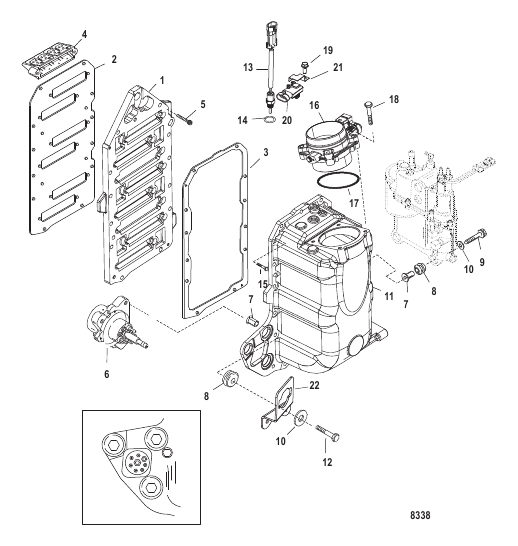

AIR HANDLER ASSEMBLY
|
1 |
disc.
|
| 1 |
855420A1 |
ADAPTER PLATE KIT
|
1 |
disc.
|
| 10 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
6 |
|
| 11 |
850248A2 |
PLENUM KIT Air
|
1 |
disc.
|
| 12 |
81893430 |
SCREW (M8 x 30)
|
3 |
disc.
|
| 13 |
885342002 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 14 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 15 |
883942 |
SCREW (M4 x 16)
|
2 |
|
| 16 |
855422A1 |
THROTTLE BODY KIT
|
1 |
disc.
|
| 17 |
855423 |
O-RING
|
1 |
|
| 18 |
82130040 |
SCREW (M6 x 40)
|
4 |
|
| 19 |
1993716 |
SCREW (M6 x 16)
|
1 |
|
| 2 |
146973 |
GASKET
|
1 |
|
| 20 |
854445 |
SENSOR MAP
|
1 |
|
| 21 |
884522 |
BRACKET MAP Sensor
|
1 |
|
| 22 |
892296 |
BRACKET
|
1 |
|
| 3 |
8500581 |
GASKET
|
1 |
|
| 4 |
8M0047661 |
REED BLOCK ASSEMBLY
|
6 |
|
| 5 |
55715 |
SCREW (.250-20 x .880)
|
12 |
|
| 6 |
857149T05 |
PUMP ASSEMBLY Oil
|
1 |
superseded
|
| 7 |
855364 |
BUSHING
|
6 |
|
| 8 |
855362001 |
GROMMET
|
6 |
|
| 9 |
81893435 |
SCREW (M8 x 35)
|
3 |
|
