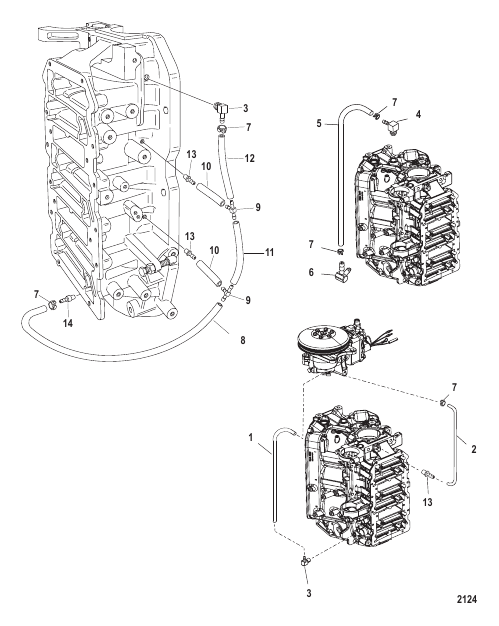

Oil Lines
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 30 Inches TUBING (38.00 Inches Bulk) Cut to 30 Inches |
1 | superseded |
| 10 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 1-1/2 Inches TUBING (38.00 Inches Bulk) Cut to 1-1/2 Inches |
2 | superseded |
| 11 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 4 -3/4 Inches TUBING (38.00 Inches Bulk) Cut to 4 -3/4 Inches |
1 | superseded |
| 12 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 3-1/2 Inches TUBING (38.00 Inches Bulk) Cut to 3-1/2 Inches |
1 | superseded |
| 13 | 426233 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
3 | |
| 14 | 426982 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 2 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 25 Inches TUBING (38.00 Inches Bulk) Cut to 25 Inches |
1 | superseded |
| 3 | 887801 |
ФИТИНГ Коленчатый патрубок, 90 градусов (0.0625-27) FITTING Elbow 90 Degree (.0625-27) |
2 | |
| 4 | 8592352 |
ОБРАТНЫЙ КЛАПАН 90 градусов (0.0625-27) CHECK VALVE 90 Degree (.0625-27) |
2 | |
| 5 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 16-1/2 Inches TUBING (38.00 Inches Bulk) Cut to 16-1/2 Inches |
2 | superseded |
| 6 | 151333 |
ФИТИНГ FITTING |
2 | |
| 7 | 69355 |
ЛЕНТОЧНЫЙ ХОМУТ (5.50") TIE STRAP (5.50 Inches) |
AR | superseded |
| 8 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 22 Inches TUBING (38.00 Inches Bulk) Cut to 22 Inches |
1 | superseded |
| 9 | 59169003 |
ФИТИНГ Тройник FITTING Tee |
2 |
