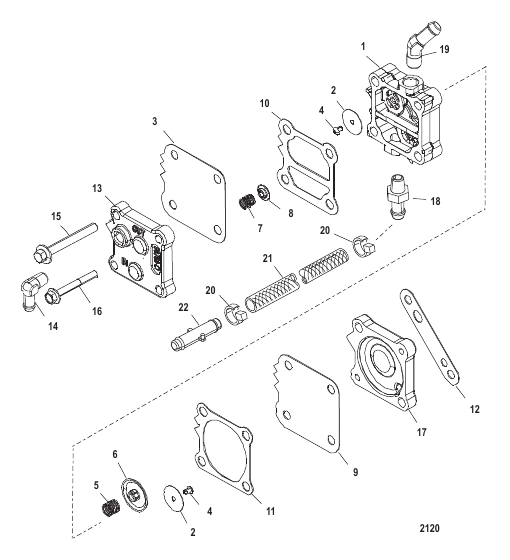

| # | Part Number | Description | Qty | Status |
|---|
| - |
14360T75 |
PUMP ASSEMBLY Fuel
|
1 |
|
| - |
814754A00 |
GASKET SET Engine
|
1 |
superseded
|
| 1 |
NSS |
NOT SOLD SEPARATE Body-Fuel Pump
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE Gasket-Boost
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Gasket-Pulse
|
1 |
|
| 12 |
987691 |
GASKET
|
1 |
superseded
|
| 13 |
987752 |
PLATE
|
1 |
|
| 14 |
996642 |
FITTING Elbow 90 Degree (.125-27 x .250) Nylon
|
1 |
|
| 15 |
82104540 |
SCREW (M5 x 40)
|
2 |
|
| 16 |
82130050 |
SCREW (M6 x 50) Pump to Crankcase
|
2 |
|
| 17 |
144303 |
BASE
|
1 |
|
| 18 |
291112 |
FITTING
|
1 |
|
| 19 |
782792 |
FITTING Elbow 45 Degree (1.25)
|
1 |
superseded
|
| 2 |
857005A1 |
DIAPHRAGM KIT
|
1 |
|
| 20 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 21 |
856822A2 |
HOSE AND SLEEVE ASSEMBLY (18.00 Inches)
|
1 |
superseded
|
| 22 |
822769 |
CONNECTOR
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Diaphragm
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Retainer
|
2 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Diaphragm
|
1 |
|
