| # | Part Number | Description | Qty | Status |
|---|
| - |
NSS |

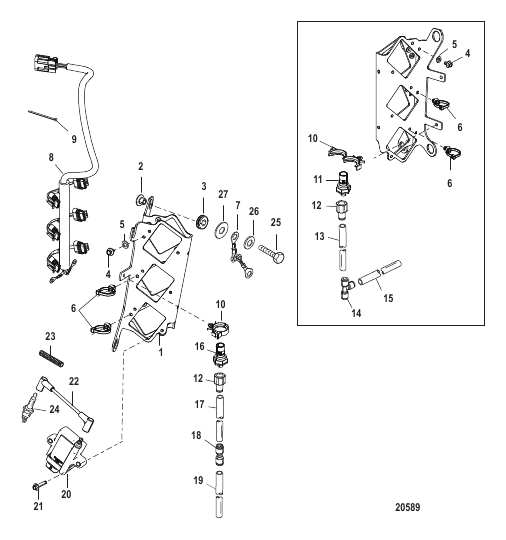

NOT SOLD SEPARATE Coil Plate Assembly-Complete
|
1 |
|
| - |
854839T02 |
HARNESS ASSEMBLY 5 Pin
|
1 |
superseded
|
| 1 |
884271 |
PLATE Coil Mounting
|
1 |
|
| 10 |
883066 |
CLIP (.865)
|
A/R |
|
| 11 |
881879010 |
SENSOR
|
1 |
superseded
|
| 12 |
892403 |
FITTING
|
A/R |
superseded
|
| 13 |
85978571 |
TUBING (52.00 Inches Bulk) Cut to 4 Inches
|
1 |
|
| 14 |
875207 |
TEE Fitting
|
1 |
|
| 15 |
85978571 |
TUBING (52.00 Inches Bulk) Cut to 5 Inches
|
1 |
|
| 16 |
881879011 |
SENSOR Pressure (0 - 100 PSI) [1B934546] & Below
|
A/R |
superseded
|
| 17 |
85944975 |
TUBING (72.00 Inches Bulk) Cut to 14-1/2 Inches
|
1 |
|
| 18 |
859747 |
COUPLER
|
1 |
superseded
|
| 19 |
85944975 |
TUBING (72.00 Inches Bulk) Cut to 52 Inches
|
1 |
|
| 2 |
8502341 |
BUSHING
|
4 |
|
| 20 |
883778A01 |
COIL ASSEMBLY Ignition
|
6 |
superseded
|
| 21 |
82129125 |
SCREW (M6 x 25 MM)
|
12 |
|
| 22 |
881908T |
CABLE SET
|
1 |
|
| 23 |
828547353 |
CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)
|
1 |
|
| 24 |
8M0048674 |
SPARK PLUG (NGK#IZFR6J-11)
|
6 |
superseded
|
| 25 |
60411 |
SCREW (.312-18 x 1.250)
|
4 |
|
| 26 |
70132 |
WASHER (.323 x .563 x .063) Stainless Steel
|
2 |
superseded
|
| 27 |
49436 |
WASHER
|
4 |
|
| 3 |
833155 |
GROMMET
|
4 |
|
| 4 |
82129110 |
SCREW (M6 x 10)
|
2 |
|
| 5 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 6 |
899145 |
CLIP Tie Strap
|
4 |
|
| 7 |
858414A1 |
CABLE ASSEMBLY Braided
|
2 |
|
| 8 |
892910T03 |
HARNESS ASSEMBLY Coil
|
1 |
|
| 9 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
