| # | Part Number | Description | Qty | Status |
|---|
| - |
888167 |
BLOCK Filler
|
1 |
|
| - |
897136A07 |
DECAL SET ProXS, HP decal not included [1B934545] & Below
|
1 |
disc.
|
| - |
8M0073124 |
DECAL SET ProXS, HP Decal not included [1B934546] & Up
|
1 |
superseded
|
| - |
8M0043699 |
DECAL M-Icon, 66mm Red
|
1 |
|
| - |
8M0043700 |
DECAL M-Icon, Red, 39mm [1B934546] & Up
|
1 |
|
| - |
892565003 |
DECAL Horsepower (150) [1B934545] & Below
|
1 |
superseded
|
| - |
8M0065744 |
DECAL Horsepower (150) [1B934546] & Up
|
1 |
|
| 1 |
883013T03 |

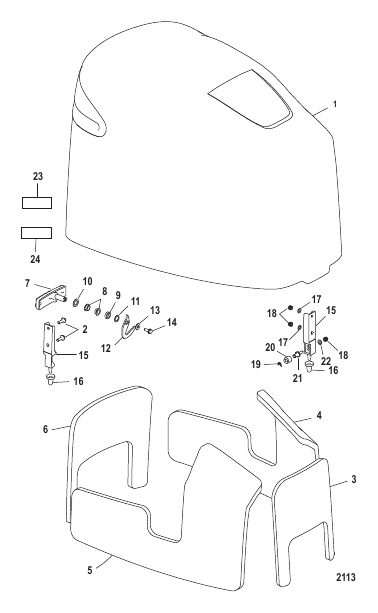

TOP COWL ASSEMBLY Includes all Decals except Horsepower [1B934545] & Below
|
1 |
disc.
|
| 1 |
8M0070603 |
TOP COWL ASSEMBLY Includes all Decals except Horsepower [1B934546] & Up
|
1 |
superseded
|
| 1 |
8M0075376 |
TOP COWL ASSEMBLY Mercury, Without decals
|
1 |
|
| 1 |
8M0075375 |
TOP COWL ASSEMBLY Mariner, Without decals
|
1 |
disc.
|
| 10 |
19605 |
WASHER (.520 x .850 x .060) Nylon - Black
|
1 |
superseded
|
| 11 |
12134 |
WASHER Wave
|
1 |
disc.
|
| 12 |
8M0001081 |
CAM
|
1 |
|
| 13 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
1 |
superseded
|
| 14 |
8M0009253 |
SCREW (M6 x 16) Included with Handle Kit
|
1 |
superseded
|
| 15 |
821249M2 |
BRACKET Front
|
3 |
superseded
|
| 16 |
815477 |
BUMPER Latch
|
3 |
|
| 17 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 18 |
401366 |
NUT (M6) Stainless Steel
|
3 |
|
| 19 |
8237951 |
RING Retaining
|
1 |
|
| 2 |
82130020 |
SCREW (M6 x 20)
|
4 |
|
| 20 |
815263 |
ROLLER
|
1 |
superseded
|
| 21 |
8155381 |
PIN Roll
|
1 |
|
| 22 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 23 |
NSS |
NOT SOLD SEPARATE Decal-Counter Rotation
|
1 |
|
| 24 |
NSS |
NOT SOLD SEPARATE Decal-Break-In
|
1 |
|
| 3 |
883019A02 |
SOUND BLANKET KIT
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Sound Blanket-Port
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Sound Blanket-Starboard
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Sound Blanket-Rear
|
1 |
|
| 7 |
831207A16 |
HANDLE KIT Cowl Latch
|
1 |
|
| 8 |
812707 |
BUSHING
|
2 |
|
| 9 |
8312141 |
SPACER
|
1 |
|
