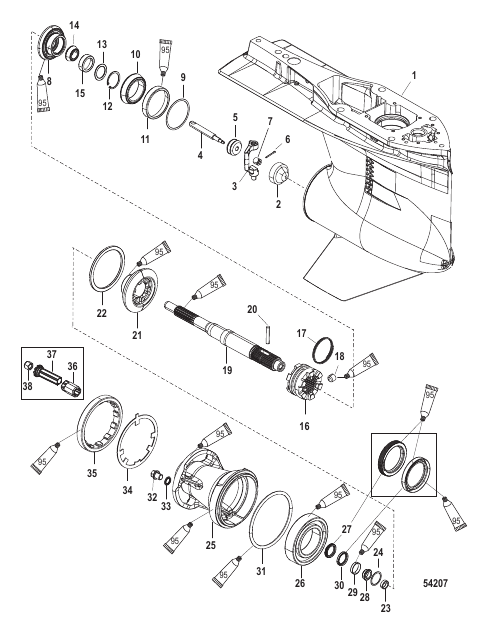

| # | Part Number | Description | Qty | Status |
|---|
| - |
842004T26 |
GEAR HOUSING ASSEMBLY XL, Complete (1.75:1)
|
1 |
superseded
|
| - |
842004T28 |
GEAR HOUSING ASSEMBLY XXL, Complete (1.75:1)
|
1 |
|
| - |
830749A01 |
SEAL KIT Gear Housing
|
1 |
|
| 1 |
842004T29 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
884323T01 |
BEARING ASSEMBLY Roller
|
1 |
superseded
|
| 11 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 12 |
8M0051043 |
RING Retaining
|
1 |
|
| 13 |
8M0053823 |
WASHER Thrust, (1.50 ID x 2.046 OD)
|
1 |
|
| 14 |
884325T01 |
BEARING ASSEMBLY Roller-Tappered
|
1 |
superseded
|
| 15 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 16 |
880714T |
CLUTCH
|
1 |
|
| 17 |
30893 |
SPRING
|
1 |
|
| 18 |
828356 |
PIN Detent
|
1 |
|
| 19 |
8M0069774 |
PROPELLER SHAFT
|
1 |
superseded
|
| 2 |
NSS |
NOT SOLD SEPARATE Plug
|
1 |
|
| 20 |
8M0084681 |
PIN Cross
|
1 |
superseded
|
| 21 |
8M0118363 |
GEAR Reverse, 21T (1.75:1)
|
1 |
|
| 22 |
880699 |
THRUST RING
|
1 |
|
| 23 |
8M0064306 |
SPACER Thrust
|
1 |
|
| 24 |
8M0076745 |
SHIM SET
|
1 |
|
| 24 |
8M0050423 |
WASHER .020
|
A/R |
|
| 24 |
8M0050424 |
WASHER .022
|
A/R |
|
| 24 |
8M0050425 |
WASHER .024
|
A/R |
|
| 24 |
8M0050427 |
WASHER .026
|
A/R |
|
| 24 |
8M0050428 |
WASHER .028
|
A/R |
|
| 24 |
8M0050429 |
WASHER .030
|
A/R |
|
| 24 |
8M0050430 |
WASHER .032
|
A/R |
|
| 24 |
8M0050431 |
WASHER .034
|
A/R |
|
| 24 |
8M0050432 |
WASHER .036
|
A/R |
|
| 24 |
8M0050433 |
WASHER .038
|
A/R |
|
| 24 |
8M0050434 |
WASHER .040
|
A/R |
|
| 24 |
8M0050435 |
WASHER .042
|
A/R |
|
| 24 |
8M0050436 |
WASHER .044
|
A/R |
|
| 24 |
8M0050437 |
WASHER .046
|
A/R |
|
| 24 |
8M0050438 |
WASHER .048
|
A/R |
|
| 24 |
8M0050439 |
WASHER .050
|
A/R |
|
| 25 |
8M0083392 |
CARRIER ASSEMBLY Bearing
|
1 |
|
| 26 |
884329T |
BEARING Ball
|
1 |
superseded
|
| 27 |
888483 |
SEAL Oil
|
1 |
superseded
|
| 28 |
884330T01 |
BEARING ASSEMBLY Taper
|
1 |
superseded
|
| 29 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 3 |
8M0046215 |
CRANK, Shifter 1/4 Pivot Pin
|
1 |
superseded
|
| 30 |
888483 |
SEAL Oil
|
1 |
superseded
|
| 31 |
896524 |
O-RING (3.850 x .210)
|
1 |
superseded
|
| 32 |
880717A01 |
SCREW/SEAL KIT
|
1 |
|
| 33 |
830749 |
SEAL
|
1 |
superseded
|
| 34 |
880697 |
KEYED WASHER
|
1 |
|
| 35 |
8M2011027 |
RETAINER
|
1 |
disc.
|
| 36 |
896233A01 |
DRIVE SLEEVE ASSEMBLY
|
1 |
disc.
|
| 37 |
8M0061986 |
ADAPTER KIT
|
1 |
|
| 38 |
52707T1 |
PROP NUT KIT (.750-16) (Mercury Branded)
|
1 |
|
| 38 |
52707Q1 |
PROP NUT KIT (.750-16) (Quicksilver Branded)
|
1 |
|
| 4 |
19755T7 |
SPOOL ASSEMBLY
|
1 |
superseded
|
| 5 |
NSS |
NOT SOLD SEPARATE Spool
|
1 |
|
| 6 |
469501 |
COTTER PIN
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Sleeve Adjusting
|
1 |
|
| 8 |
892595A04 |
GEAR SET Forward/Pinion (1.75:1)
|
1 |
|
| 9 |
8M0063270 |
SHIM SET
|
AR |
|
