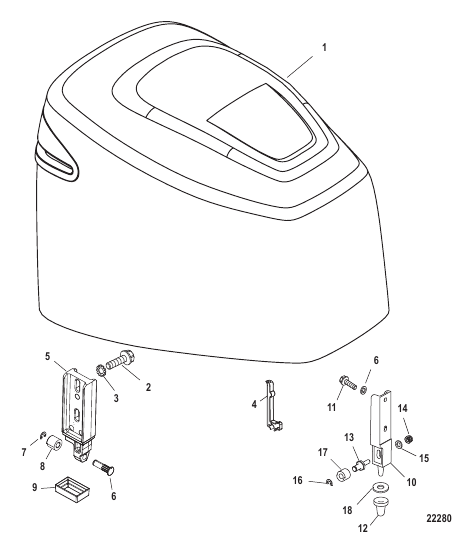

| # | Part Number | Description | Qty | Status |
|---|
| - |
842782A04 |
DECAL SET [1E053148] & Below
|
1 |
disc.
|
| - |
8M0121263 |
DECAL SET [1E053149] & Up
|
1 |
|
| 1 |
881288T64 |
TOP COWL ASSEMBLY Includes all Decals [1E053148] & Below
|
1 |
|
| 1 |
8M0121265 |
TOP COWL ASSEMBLY Includes all Decals [1E053149] & Up
|
1 |
|
| 10 |
821249M2 |
BRACKET Front
|
1 |
superseded
|
| 11 |
82130020 |
SCREW (M6 x 20)
|
2 |
|
| 12 |
815477 |
BUMPER Latch
|
1 |
|
| 13 |
8155381 |
PIN Roll
|
1 |
|
| 14 |
401366 |
NUT (M6) Stainless Steel
|
1 |
|
| 15 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 16 |
8237951 |
RING Retaining
|
1 |
|
| 17 |
815263 |
ROLLER
|
1 |
superseded
|
| 18 |
87161 |
WASHER
|
1 |
|
| 2 |
82130030 |
SCREW (M6 x 30)
|
4 |
|
| 3 |
93702 |
WASHER (.250 External Star)
|
6 |
|
| 4 |
826639T |
COVER
|
1 |
|
| 5 |
8M0010389 |
BRACKET ASSEMBLY Cowl
|
2 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Pin
|
2 |
|
| 7 |
8237951 |
RING Retaining
|
2 |
|
| 8 |
815263 |
ROLLER
|
2 |
superseded
|
| 9 |
850685002 |
GROMMET
|
2 |
superseded
|
