| # | Part Number | Description | Qty | Status |
|---|
| - |
880133T07 |

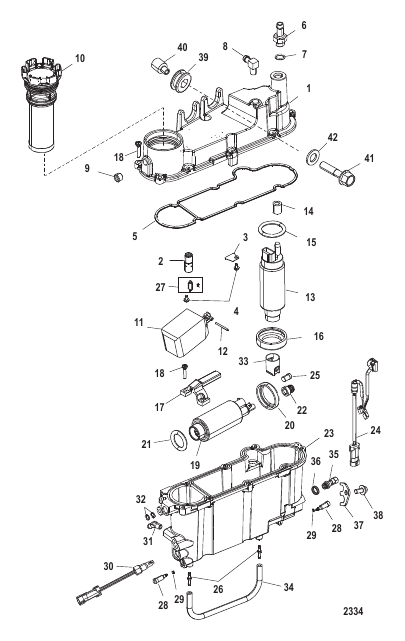

VAPOR SEPARATOR ASSEMBLY
|
1 |
superseded
|
| - |
889316A1 |
O-RING KIT Vapor Seperator
|
1 |
|
| 1 |
889317T1 |
COVER KIT
|
1 |
|
| 10 |
884380T |
FILTER Fuel
|
1 |
superseded
|
| 11 |
889320A1 |
FLOAT KIT
|
1 |
|
| 12 |
F10064 |
SHAFT
|
1 |
|
| 13 |
888725T02 |
PUMP ASSEMBLY Fuel - High Pressure
|
1 |
|
| 14 |
855428 |
SLEEVE
|
1 |
superseded
|
| 15 |
8893162 |
O-RING
|
1 |
|
| 16 |
889321 |
SEAL
|
1 |
disc.
|
| 17 |
889328 |
RETAINER
|
1 |
|
| 18 |
9643 |
SCREW
|
11 |
|
| 19 |
888733T02 |
PUMP ASSEMBLY Boost
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Seat
|
1 |
|
| 20 |
889322 |
GROMMET
|
1 |
|
| 21 |
889316 |
O-RING
|
1 |
|
| 22 |
889323 |
SEAL
|
1 |
superseded
|
| 23 |
889324T02 |
BOWL KIT
|
1 |
superseded
|
| 24 |
889325A1 |
WIRE
|
1 |
superseded
|
| 25 |
NSS |
NOT SOLD SEPARATE Check Valve
|
1 |
|
| 26 |
855424011 |
FITTING
|
2 |
|
| 27 |
889326A1 |
VALVE KIT Inlet
|
1 |
|
| 28 |
889327A1 |
SCREW Drian
|
2 |
|
| 29 |
8893161 |
O-RING
|
2 |
|
| 3 |
889318001 |
PLATE Baffle
|
1 |
|
| 30 |
889330 |
SENSOR Water
|
1 |
superseded
|
| 31 |
782792 |
FITTING Elbow 45 Degree (1.25)
|
1 |
superseded
|
| 32 |
627021 |
O-RING (.301 x .070)
|
2 |
|
| 33 |
889430 |
INSERT
|
1 |
|
| 34 |
883545002 |
HOSE
|
1 |
|
| 35 |
884820 |
SHRADER VALVE
|
1 |
|
| 36 |
891778 |
O-RING
|
1 |
|
| 37 |
884819 |
CLIP
|
1 |
|
| 38 |
82130012 |
SCREW (M6 x 12)
|
1 |
|
| 39 |
855362001 |
GROMMET
|
3 |
|
| 4 |
883223 |
SCREW (M6 x 16)
|
2 |
|
| 40 |
883050 |
SPACER
|
3 |
|
| 41 |
81893460 |
SCREW (M8 x 60)
|
3 |
|
| 42 |
4002318 |
WASHER 8.90 x 24.0x 2.4 PL SS
|
3 |
|
| 5 |
889319 |
GASKET
|
1 |
|
| 6 |
883556 |
FITTING
|
1 |
|
| 7 |
883209 |
O-RING
|
1 |
superseded
|
| 8 |
14868 |
FITTING
|
1 |
|
| 9 |
883208 |
PLUG
|
1 |
|
