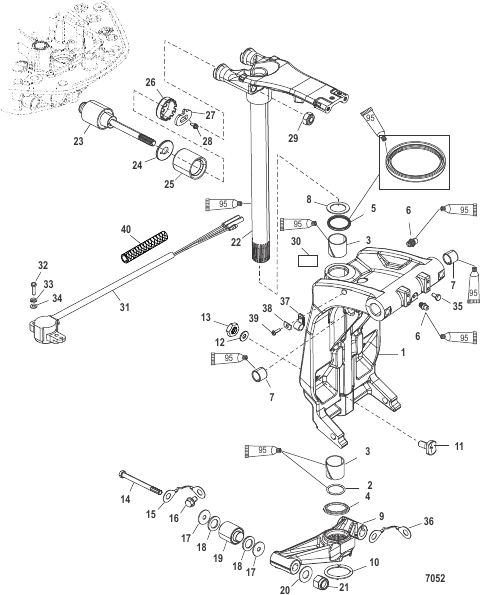

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
896545A02 |
SWIVEL BRACKET
|
1 |
superseded
|
| 10 |
67684 |
RING Retaining
|
1 |
|
| 11 |
996301 |
STRIKER PLATE
|
2 |
superseded
|
| 12 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 13 |
46335 |
NUT (.375-24)
|
2 |
|
| 14 |
896217 |
BOLT (M14 x 175)
|
2 |
|
| 15 |
88238A10 |
CABLE ASSEMBLY Ground
|
1 |
|
| 16 |
41508 |
SCREW (.250-20 x .500) Stainless Steel
|
1 |
|
| 17 |
815432 |
WASHER (.562 x 2.00 x .125)
|
4 |
|
| 18 |
8154331 |
WASHER (1.25 x 2.00 x .19)
|
4 |
|
| 19 |
813771003 |
MOUNT Lower
|
2 |
|
| 2 |
33504 |
O-RING
|
1 |
superseded
|
| 20 |
825190 |
WASHER
|
2 |
|
| 21 |
896602 |
NUT (M14)
|
2 |
|
| 22 |
826432T10 |
SWIVEL PIN ASSEMBLY
|
1 |
superseded
|
| 23 |
897991A01 |
MOUNT ASSEMBLY
|
2 |
|
| 24 |
898443 |
WASHER Retainer
|
2 |
|
| 25 |
898444001 |
SLEEVE
|
2 |
disc.
|
| 26 |
897731001 |
NUT Spanner
|
2 |
|
| 27 |
897728 |
RETAINER
|
2 |
|
| 28 |
88552520 |
SCREW (M6 x 20 MM) Stainless Steel
|
2 |
superseded
|
| 29 |
896602 |
NUT (M14)
|
2 |
|
| 3 |
818764 |
BUSHING
|
2 |
|
| 30 |
NSS |
NOT SOLD SEPARATE Decal-Serial Overlaminate
|
1 |
|
| 31 |
896688001 |
SENDER ASSEMBLY Trim
|
1 |
|
| 32 |
852368 |
SCREW (#10-24 x .750)
|
2 |
|
| 33 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
2 |
|
| 34 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 35 |
64014 |
SCREW (.250-28 x .500)
|
2 |
|
| 36 |
88238T22 |
CABLE ASSEMBLY
|
1 |
|
| 37 |
22740 |
CLIP
|
1 |
|
| 38 |
69205 |
C WASHER
|
1 |
superseded
|
| 39 |
878609 |
SCREW (#10-16 x .600)
|
1 |
|
| 4 |
816039 |
SPACER
|
1 |
|
| 40 |
828547353 |
CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to16 Inches)
|
1 |
|
| 5 |
87735 |
SEAL Oil (Lower)
|
1 |
|
| 6 |
74036 |
FITTING Grease
|
2 |
superseded
|
| 7 |
821207 |
BUSHING
|
2 |
|
| 8 |
816432 |
THRUST WASHER
|
1 |
|
| 9 |
896888T |
YOKE Bottom
|
1 |
|
