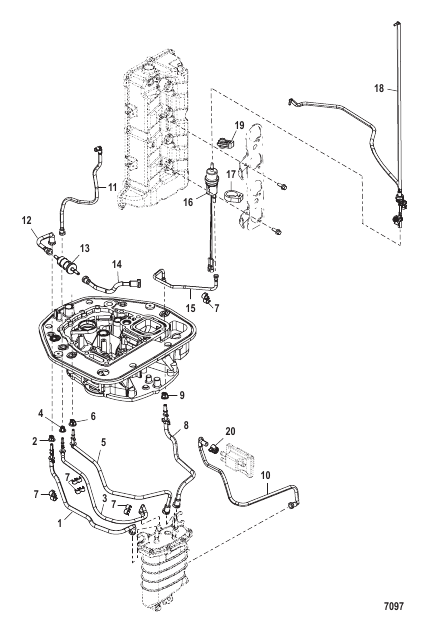

Adapter Plate Hose Routings
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|
| 1 |
896222 |
HOSE Fuel
|
1 |
superseded
|
| 10 |
896225 |
HOSE Water
|
1 |
superseded
|
| 11 |
896226 |
HOSE To CAC
|
1 |
superseded
|
| 12 |
896223 |
HOSE Fuel
|
1 |
superseded
|
| 13 |
879885T |
FILTER Fuel
|
1 |
superseded
|
| 14 |
896224 |
HOSE Fuel To Fuel Rail
|
1 |
superseded
|
| 15 |
896646 |
HOSE
|
1 |
superseded
|
| 16 |
884545A02 |
CANISTER ASSEMBLY
|
|
superseded
|
| 17 |
897434 |
GROMMET
|
1 |
|
| 18 |
896693A05 |
VENT ASSEMBLY Purge
|
1 |
superseded
|
| 19 |
897452 |
GROMMET
|
1 |
|
| 2 |
884546 |
GROMMET
|
1 |
|
| 20 |
815504104 |
CLAMP Worm Gear
|
1 |
|
| 3 |
896227 |
HOSE
|
1 |
superseded
|
| 4 |
884546 |
GROMMET
|
1 |
|
| 5 |
896647 |
HOSE Fuel
|
1 |
superseded
|
| 6 |
884546 |
GROMMET
|
1 |
|
| 7 |
888523001 |
CLIP
|
5 |
|
| 8 |
896240 |
HOSE Fuel
|
1 |
superseded
|
| 9 |
884546 |
GROMMET
|
1 |
|
