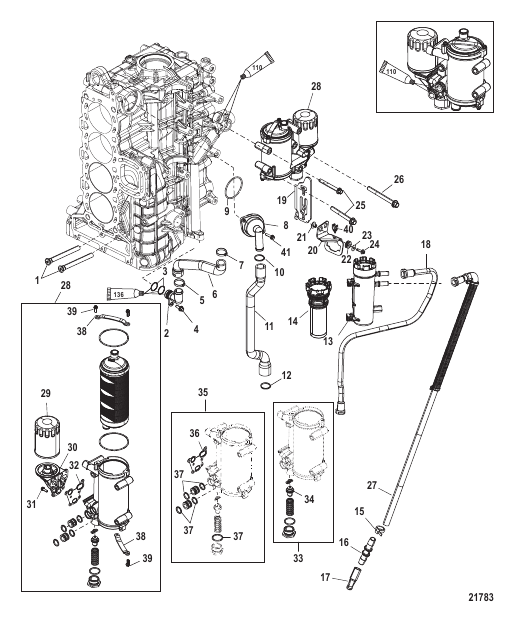

| # | Part Number | Description | Qty | Status |
|---|
| - |
896142A06 |
GASKET SET Powerhead
|
1 |
superseded
|
| - |
896499A07 |
LONG BLOCK ASSEMBLY
|
1 |
disc.
|
| 1 |
892404A05 |
DEFLECTOR ASSEMBLY Water
|
2 |
|
| 10 |
888988001 |
CLAMP (36.1 mm)
|
1 |
superseded
|
| 11 |
896059001 |
HOSE Thermostat
|
1 |
|
| 12 |
888988007 |
CLAMP (42.5 mm)
|
1 |
|
| 13 |
892242T |
FILTER ASSEMBLY Fuel
|
1 |
superseded
|
| 14 |
884380T |
FILTER Fuel
|
1 |
superseded
|
| 15 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 16 |
892356 |
CONNECTOR
|
1 |
|
| 17 |
863156 |
GRAB TAB
|
1 |
|
| 18 |
896239 |
HOSE Fuel to Lift Pump
|
1 |
superseded
|
| 19 |
892147A01 |
BRACKET ASSEMBLY
|
1 |
|
| 2 |
885518A02 |
FITTING ASSEMBLY
|
1 |
|
| 20 |
897126 |
BRACKET
|
1 |
|
| 21 |
822003 |
BUSHING
|
2 |
|
| 22 |
834985 |
GROMMET
|
2 |
superseded
|
| 23 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
2 |
|
| 24 |
82129125 |
SCREW (M6 x 25 MM)
|
2 |
|
| 25 |
88552785 |
SCREW (M10 x 85)
|
3 |
superseded
|
| 26 |
885527105 |
SCREW (M10 x 105)
|
1 |
superseded
|
| 27 |
880597A01 |
HOSE ASSEMBLY Fuel Inlet
|
1 |
superseded
|
| 28 |
892801T01 |
COOLER ASSEMBLY Oil
|
1 |
superseded
|
| 29 |
896546T |
FILTER Oil
|
1 |
superseded
|
| 3 |
62701 |
O-RING
|
2 |
|
| 30 |
880640A05 |
HOUSING ASSEMBLY Intergrated Oil Module
|
1 |
superseded
|
| 31 |
895336 |
SCREW (M6 x 18)
|
6 |
superseded
|
| 32 |
880640500 |
GASKET
|
1 |
superseded
|
| 33 |
880640A06 |
THERMOSTAT/GUIDE KIT
|
1 |
disc.
|
| 34 |
880640508 |
THERMOSTAT
|
1 |
disc.
|
| 35 |
892801T53 |
OVERHAUL KIT
|
1 |
disc.
|
| 36 |
880640500 |
GASKET
|
1 |
superseded
|
| 37 |
880640A09 |
O-RING KIT
|
1 |
superseded
|
| 38 |
895032 |
STRAP
|
2 |
|
| 39 |
895336 |
SCREW (M6 x 18)
|
4 |
superseded
|
| 4 |
88552516 |
SCREW (M6 x 16 MM) Stainless Steel
|
1 |
superseded
|
| 40 |
897559 |
CLIP
|
1 |
|
| 41 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
2 |
superseded
|
| 5 |
888988011 |
CLAMP (38.1 MM)
|
1 |
|
| 6 |
888930003 |
HOSE
|
1 |
|
| 7 |
888988008 |
CLAMP (34.6 MM)
|
1 |
superseded
|
| 8 |
892864T04 |
THERMOSTAT ASSEMBLY
|
1 |
superseded
|
| 9 |
8M0005958 |
O-RING
|
1 |
|
