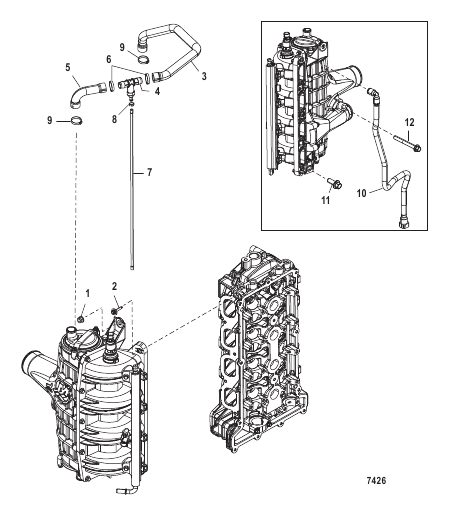

Charge Cooler/Intake Manifold Hose Routings
Parts (13)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Hose Assembly-Complete NOT SOLD SEPARATE Hose Assembly-Complete |
1 | |
| 1 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
1 | |
| 10 | 896226 |
РУКАВ Manifold Reference-Upper HOSE Manifold Reference-Upper |
1 | superseded |
| 11 | 88552730 |
ВИНТ (M10 x 30) SCREW (M10 x 30) |
1 | superseded |
| 12 | 88552765 |
ВИНТ (M10 x 65) SCREW (M10 x 65) |
1 | |
| 2 | 892487001 |
ВИНТ SCREW |
5 | superseded |
| 3 | 896255 |
РУКАВ HOSE |
1 | |
| 4 | 889633A04 |
ФИТИНГИ В СБОРЕ Промывка FITTING ASSEMBLY Flushing |
1 | superseded |
| 5 | 889592001 |
РУКАВ HOSE |
1 | |
| 6 | 888988008 |
ЗАЖИМ (34,6 ММ) CLAMP (34.6 MM) |
2 | superseded |
| 7 | 896257 |
РУКАВ HOSE |
1 | |
| 8 | 850181 |
ЛЕНТОЧНЫЙ ХОМУТ (11.750") TIE STRAP (11.750 Inches) |
1 | |
| 9 | 888988008 |
ЗАЖИМ (34,6 ММ) CLAMP (34.6 MM) |
2 | superseded |
