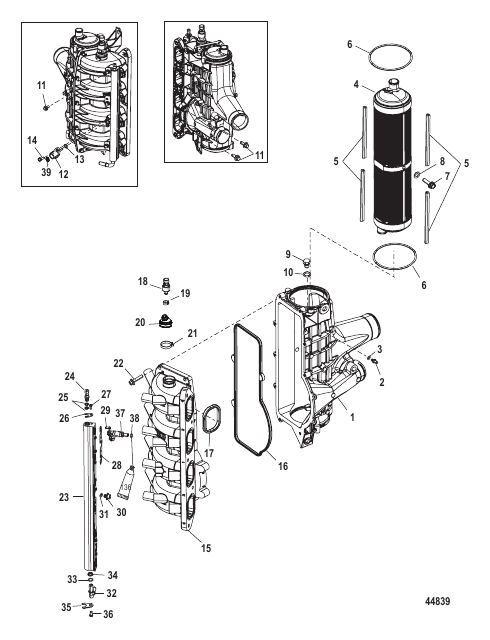

| # | Part Number | Description | Qty | Status |
|---|
| - |
892952T03 |
IAFM ASSEMBLY
|
1 |
superseded
|
| 1 |
892953A01 |
CAC ASSEMBLY
|
1 |
superseded
|
| 10 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 11 |
895053 |
SCREW (M6 x 15)
|
5 |
|
| 12 |
891663001 |
SENSOR Temperature
|
1 |
|
| 13 |
892317001 |
O-RING
|
1 |
|
| 14 |
895054 |
SCREW (M4 x 16 MM)
|
2 |
|
| 15 |
892954A01 |
MANIFOLD ASSEMBLY Intake
|
1 |
disc.
|
| 16 |
896663 |
SEAL
|
1 |
|
| 17 |
895020 |
SEAL
|
6 |
|
| 18 |
885548002 |
SENSOR MAP
|
1 |
superseded
|
| 19 |
888988015 |
CLAMP (15.7 mm) Map Sensor to Boot
|
1 |
superseded
|
| 2 |
NSS |
NOT SOLD SEPARATE Fitting
|
1 |
|
| 20 |
892952500 |
BOOT
|
1 |
|
| 21 |
888988001 |
CLAMP (36.1 mm)
|
1 |
superseded
|
| 22 |
895052 |
SCREW (M6 x 25 MM)
|
9 |
superseded
|
| 23 |
896503A01 |
FUEL RAIL KIT
|
1 |
disc.
|
| 24 |
895028A01 |
VALVE Schrader
|
1 |
disc.
|
| 25 |
895056 |
O-RING
|
2 |
|
| 26 |
895026 |
BRACKET
|
1 |
disc.
|
| 27 |
895051 |
SCREW (M5 x 10)
|
1 |
disc.
|
| 28 |
895024 |
BRACKET
|
3 |
disc.
|
| 29 |
895051 |
SCREW (M5 x 10)
|
12 |
disc.
|
| 3 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 30 |
895025 |
DAMPER
|
1 |
|
| 31 |
851889 |
O-RING
|
1 |
|
| 32 |
895029A01 |
TUBE KIT Fuel Inlet
|
1 |
|
| 33 |
895055 |
WASHER
|
1 |
disc.
|
| 34 |
895057 |
O-RING
|
1 |
|
| 35 |
895027 |
BRACKET
|
1 |
|
| 36 |
895051 |
SCREW (M5 x 10)
|
1 |
disc.
|
| 37 |
8M0006027 |
INJECTOR Fuel
|
4 |
superseded
|
| 38 |
851889 |
O-RING
|
8 |
|
| 39 |
8M0006599 |
GASKET
|
1 |
disc.
|
| 4 |
NSS |
NOT SOLD SEPARATE Stack Assembly
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Seal Kit
|
4 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Seal
|
2 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Screw
|
2 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Washer
|
2 |
|
| 9 |
895034 |
FITTING
|
1 |
superseded
|
