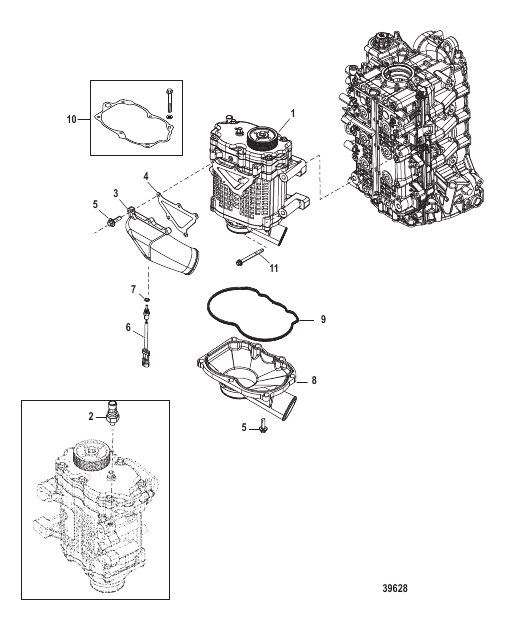

| # | Part Number | Description | Qty | Status |
|---|
| - |
888947A10 |
END CAP KIT Supercharger [1B381781] & Below
|
1 |
superseded
|
| - |
8M0045222 |
END CAP KIT Supercharger [1B381782] & Up
|
1 |
|
| 1 |
892807T04 |
SUPERCHARGER
|
1 |
superseded
|
| 10 |
847803A02 |
BUSHING/GASKET KIT
|
1 |
|
| 11 |
885527105 |
SCREW (M10 x 105)
|
4 |
superseded
|
| 2 |
897447002 |
SENSOR Oil Pressure
|
1 |
superseded
|
| 3 |
888947A04 |
OUTLET DUCT KIT
|
1 |
disc.
|
| 4 |
888947504 |
GASKET
|
1 |
|
| 5 |
888947502 |
BOLT
|
9 |
|
| 6 |
885342002 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 7 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 8 |
888947A05 |
DUCT KIT Inlet
|
1 |
|
| 9 |
888947501 |
GASKET
|
1 |
|
