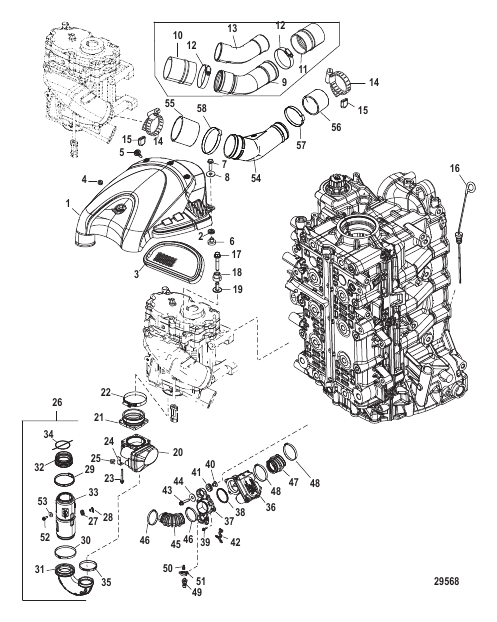

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
896246T02 |
INTAKE ASSEMBLY Upper
|
1 |
superseded
|
| 10 |
893389 |
HOSE (65 Inside Diameter) (Design I - Use with Metal Tube)
|
1 |
disc.
|
| 11 |
893390 |
HOSE (60 Inside Diameter) (Design I - Use with Metal Tube)
|
1 |
disc.
|
| 12 |
893342 |
CLAMP (Design I - Use with Metal Tube)
|
2 |
|
| 13 |
893391 |
HOSE SLEEVE (Design I - Use with Metal Tube)
|
1 |
disc.
|
| 14 |
893342 |
CLAMP
|
2 |
|
| 15 |
8079923 |
COVER Hose Clamp End
|
2 |
superseded
|
| 16 |
898022 |
DIPSTICK Oil
|
1 |
|
| 17 |
88552530 |
SCREW (M6 x 30 MM) Stainless Steel
|
1 |
superseded
|
| 18 |
813644002 |
GROMMET
|
1 |
|
| 19 |
898445 |
BUSHING
|
1 |
|
| 2 |
8349851 |
GROMMET
|
2 |
|
| 20 |
892949T02 |
CONTROL ASSEMBLY Throttle - Electronic
|
1 |
|
| 21 |
892950T02 |
ISOLATOR
|
1 |
|
| 22 |
815504244 |
CLAMP Worm Gear
|
1 |
|
| 23 |
88552550 |
SCREW (M6 x 50 MM) Stainless Steel
|
4 |
|
| 24 |
884353 |
BRACKET
|
2 |
|
| 25 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 26 |
892383T51 |
INTAKE ASSEMBLY Lower
|
1 |
|
| 27 |
8349851 |
GROMMET
|
1 |
|
| 28 |
856954 |
BUSHING
|
1 |
|
| 29 |
888988026 |
CLAMP
|
1 |
|
| 3 |
896247 |
FILTER
|
1 |
|
| 30 |
888988027 |
CLAMP
|
1 |
|
| 31 |
896245001 |
DUCT Inlet
|
1 |
disc.
|
| 32 |
896244 |
COUPLER
|
1 |
|
| 33 |
NSS |
NOT SOLD SEPARATE Resonator
|
1 |
|
| 34 |
896532 |
SPRING
|
1 |
disc.
|
| 35 |
889691 |
CLAMP Oetiker
|
1 |
|
| 36 |
884408A07 |
VALVE KIT Control - Electric Boost
|
1 |
superseded
|
| 37 |
887939007 |
PLATE Boost Valve Mounting
|
1 |
|
| 38 |
892079 |
O-RING
|
1 |
|
| 39 |
88552520 |
SCREW (M6 x 20 MM) Stainless Steel
|
4 |
superseded
|
| 4 |
20116 |
GROMMET Fuel Vent Hose
|
1 |
|
| 40 |
8502341 |
BUSHING
|
2 |
|
| 41 |
833155 |
GROMMET
|
2 |
|
| 42 |
859376 |
CLIP
|
1 |
|
| 43 |
88552635 |
SCREW (M8 x 35 MM)
|
2 |
superseded
|
| 44 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
2 |
|
| 45 |
892947 |
HOSE
|
1 |
superseded
|
| 46 |
888988002 |
CLAMP (57.5 mm) Front Electronic Boost Control
|
2 |
|
| 47 |
887938003 |
TUBE Rear
|
1 |
|
| 48 |
888988004 |
CLAMP (62.0 mm) Rear Electronic Boost Control
|
2 |
|
| 49 |
881879A16 |
SENSOR ASSEMBLY Pitot
|
1 |
superseded
|
| 5 |
897703 |
SCREW
|
3 |
|
| 50 |
892403 |
FITTING
|
1 |
superseded
|
| 51 |
883066 |
CLIP (.865)
|
1 |
|
| 52 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
1 |
superseded
|
| 53 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
1 |
|
| 54 |
8M0005899 |
TUBE ASSEMBLY Hot Air Duct (Design II Plastic Tube)
|
1 |
superseded
|
| 55 |
896271 |
HOSE (Design II - Use with Plastic Tube)
|
1 |
|
| 56 |
896259 |
HOSE (Design II - Use with Plastic Tube)
|
1 |
|
| 57 |
888988021 |
CLAMP Oetiker (Design II - Use with Plastic Tube)
|
1 |
|
| 58 |
888988020 |
CLAMP Oetiker (Design II - Use with Plastic Tube)
|
1 |
|
| 6 |
826618 |
BUSHING
|
2 |
|
| 7 |
40011129 |
SCREW (M6 x 25) Stainless Steel
|
2 |
|
| 8 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
2 |
|
| 9 |
893307A01 |
TUBE OUTLET ASSEMBLY (Design I Metal Tube)
|
1 |
superseded
|
