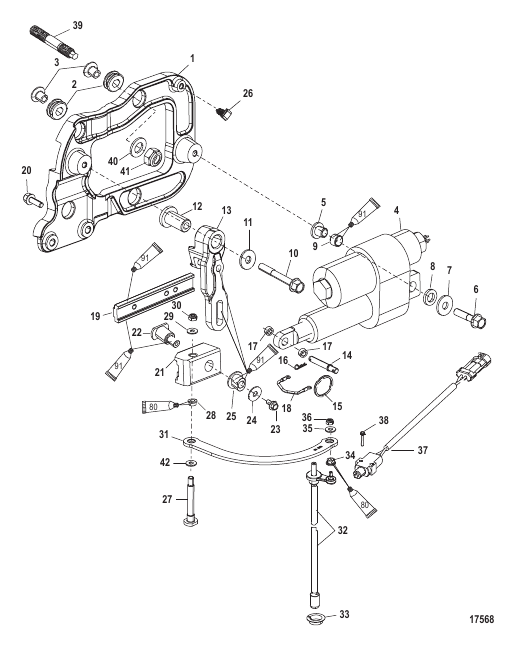

| # | Part Number | Description | Qty | Status |
|---|
| - |
NSS |
NOT SOLD SEPARATE Actuator Plate Assembly-Complete
|
1 |
|
| 1 |
895739T |
BRACKET Shift
|
1 |
|
| 10 |
88552660 |
SCREW (M8 x 60)
|
1 |
superseded
|
| 11 |
898097 |
WASHER
|
1 |
disc.
|
| 12 |
884554 |
BUSHING
|
1 |
|
| 13 |
895737 |
BELL CRANK
|
1 |
|
| 14 |
895736 |
PIN
|
1 |
disc.
|
| 15 |
885569 |
SPLIT RING
|
1 |
disc.
|
| 16 |
NSS |
NOT SOLD SEPARATE Cotter Pin (Service Bulletin 2003-10)
|
1 |
|
| 17 |
884599 |
SPACER
|
2 |
disc.
|
| 18 |
88807A6 |
CABLE ASSEMBLY (3.50 Inches) Black
|
1 |
|
| 19 |
896212 |
RAIL SHIFT SLIDE
|
1 |
|
| 2 |
855362001 |
GROMMET
|
4 |
|
| 20 |
82155025 |
SCREW (M8 x 25 MM) Stainless Steel
|
2 |
|
| 21 |
898053A01 |
SHIFT SLIDER KIT
|
1 |
|
| 22 |
884555 |
BUSHING
|
1 |
|
| 23 |
82104510 |
SCREW (M5 x 10)
|
1 |
|
| 24 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
1 |
|
| 25 |
887901 |
BUSHING
|
1 |
|
| 26 |
828991T |
CLIP
|
1 |
|
| 27 |
898052 |
STUD (Included with Reference 21)
|
1 |
|
| 28 |
896551 |
BUSHING
|
1 |
|
| 29 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
1 |
|
| 3 |
855364 |
BUSHING
|
4 |
|
| 30 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 31 |
895742 |
SHIFT LINK
|
1 |
|
| 32 |
897563 |
LEVER Shift Shaft (Long)
|
1 |
superseded
|
| 32 |
897563001 |
LEVER Shift Shaft (X-Long)
|
1 |
superseded
|
| 33 |
74647 |
NYLINER
|
1 |
|
| 34 |
896551 |
BUSHING
|
1 |
|
| 35 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
1 |
|
| 36 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 37 |
889514A01 |
SWITCH [2B202730] & Below
|
1 |
superseded
|
| 38 |
88075020 |
SCREW (M3 x 20)
|
2 |
|
| 39 |
896550 |
STUD (M8 x 50)
|
4 |
superseded
|
| 4 |
8M0048114 |
SHIFT ACTUATOR
|
1 |
superseded
|
| 40 |
4002318 |
WASHER 8.90 x 24.0x 2.4 PL SS
|
4 |
|
| 41 |
401388 |
NUT (M8) Stainless Steel
|
4 |
|
| 42 |
814806 |
WASHER (.344 x .688 x .065) Stainless Steel
|
1 |
superseded
|
| 5 |
884532001 |
BUSHING
|
1 |
|
| 6 |
81893435 |
SCREW (M8 x 35)
|
1 |
|
| 7 |
898097 |
WASHER
|
1 |
disc.
|
| 8 |
889661 |
WASHER Rubber
|
1 |
disc.
|
| 9 |
888589 |
WEAR SLEEVE
|
1 |
disc.
|
