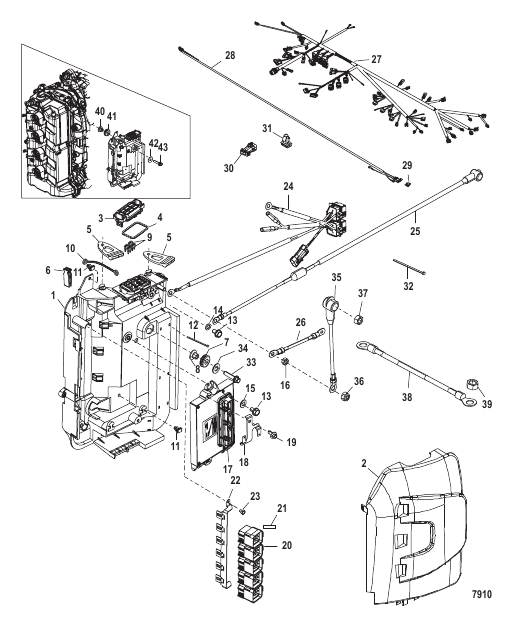

| # | Part Number | Description | Qty | Status |
|---|
| - |
NSS |
NOT SOLD SEPARATE Electrical Box Assembly-Complete
|
1 |
|
| - |
NSS |
NOT SOLD SEPARATE Electrical Box Assembly
|
1 |
|
| - |
NSS |
NOT SOLD SEPARATE Relay Bracket Assembly-Complete
|
1 |
|
| - |
896499A07 |
LONG BLOCK ASSEMBLY
|
1 |
disc.
|
| 1 |
896230T01 |
BOX ASSEMBLY Electrical
|
1 |
superseded
|
| 10 |
892244 |
STRAP Cover
|
1 |
|
| 11 |
892448 |
CLIP
|
2 |
|
| 12 |
850181 |
TIE STRAP (11.750 Inches)
|
8 |
|
| 13 |
40011145 |
SCREW (M8 x 10) Stainless Steel
|
2 |
|
| 14 |
843108 |
WASHER (.330 x .560 x .060) Stainless Steel
|
1 |
|
| 15 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
1 |
|
| 16 |
400213 |
NUT (M8) Stainless Steel
|
1 |
|
| 17 |
89790703T |
PCM Propulsion Control Module (135) [USA-1B428334] & Below
|
1 |
superseded
|
| 17 |
88924605T |
PCM Propulsion Control Module (135) [USA-1B428335] THRU [USA-1B460633]
|
1 |
superseded
|
| 17 |
88924613T |
PCM Propulsion Control Module (135) [USA-1B460634] & Up
|
1 |
|
| 17 |
89790704T |
PCM Propulsion Control Module (150) [USA-1B428334] & Below
|
1 |
superseded
|
| 17 |
88924612T |
PCM Propulsion Control Module (150) [USA-1B428335] THRU [USA-1B460633]
|
1 |
superseded
|
| 17 |
88924615T |
PCM Propulsion Control Module (150) [USA-1B460634] & Up
|
1 |
|
| 17 |
89790705T |
PCM Propulsion Control Module (175) [USA-1B428334] & Below
|
1 |
superseded
|
| 17 |
88924604T |
PCM Propulsion Control Module (175) [USA-1B428335] THRU [USA-1B460633]
|
1 |
superseded
|
| 17 |
88924617T |
PCM Propulsion Control Module (175) [USA-1B460634] & Up
|
1 |
|
| 17 |
89790706T |
PCM Propulsion Control Module (135 EU) [BEL-0P472225] & Below
|
1 |
superseded
|
| 17 |
88924607T |
PCM Propulsion Control Module (135 EU) [BEL-0P472226] THRU [BEL-0P481104]
|
1 |
superseded
|
| 17 |
88924614T |
PCM Propulsion Control Module (135 EU) [BEL-0P481105] & Up
|
1 |
|
| 17 |
89790707T |
PCM Propulsion Control Module (150 EU) [BEL-0P472225] & Below
|
1 |
superseded
|
| 17 |
88924611T |
PCM Propulsion Control Module (150 EU) [BEL-0P472226] THRU [BEL-0P481104]
|
1 |
superseded
|
| 17 |
88924616T |
PCM Propulsion Control Module (150 EU) [BEL-0P481105] & Up
|
1 |
|
| 17 |
88924618T |
PCM Propulsion Control Module (175 EU) [BEL-0P481105] & Up
|
1 |
|
| 18 |
891520001 |
CLIP
|
1 |
|
| 19 |
82129114 |
SCREW (M6 x 14)
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Cover
|
1 |
|
| 20 |
882751A04 |
RELAY ASSEMBLY
|
5 |
|
| 21 |
NSS |
NOT SOLD SEPARATE Decal-Trim Relay
|
5 |
|
| 22 |
889532 |
BRACKET
|
1 |
|
| 23 |
40007103 |
SCREW (M5 x 6)
|
2 |
|
| 24 |
819514A23 |
HARNESS ASSEMBLY Trim
|
1 |
|
| 25 |
892137T03 |
HARNESS ASSEMBLY Fuse
|
1 |
|
| 26 |
93388A19 |
CABLE ASSEMBLY
|
1 |
|
| 27 |
892579A05 |
HARNESS ASSEMBLY Engine
|
1 |
superseded
|
| 28 |
888416T03 |
HARNESS ASSEMBLY
|
1 |
superseded
|
| 29 |
862646 |
FUSE Tan - 5 Ampere
|
1 |
|
| 3 |
888491 |
COVER
|
1 |
superseded
|
| 30 |
877613A02 |
CONNECTOR ASSEMBLY Weather Cap 6 Pin
|
1 |
|
| 31 |
879962 |
CLIP
|
1 |
|
| 32 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 33 |
88552635 |
SCREW (M8 x 35 MM)
|
1 |
superseded
|
| 34 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
1 |
|
| 35 |
88439A25 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 36 |
401388 |
NUT (M8) Stainless Steel
|
2 |
|
| 37 |
86226 |
NUT (.375-16) Battery Cable-Positive
|
1 |
superseded
|
| 38 |
88439A26 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 39 |
68292 |
NUT (.312-18) Battery Cable-Negative
|
1 |
superseded
|
| 4 |
885583 |
SEAL
|
1 |
|
| 40 |
8502341 |
BUSHING
|
2 |
|
| 41 |
833155 |
GROMMET
|
2 |
|
| 42 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
2 |
|
| 43 |
88552635 |
SCREW (M8 x 35 MM)
|
2 |
superseded
|
| 5 |
889531 |
STRAP
|
2 |
|
| 6 |
895099 |
EXTRACTOR Fuse
|
1 |
|
| 7 |
833155 |
GROMMET
|
1 |
|
| 8 |
8502341 |
BUSHING
|
1 |
|
| 9 |
83296920 |
FUSE Mini - Yellow - 20 Ampere
|
7 |
superseded
|
| 9 |
8329692 |
FUSE Mini - Gray - 2 Ampere
|
1 |
superseded
|
