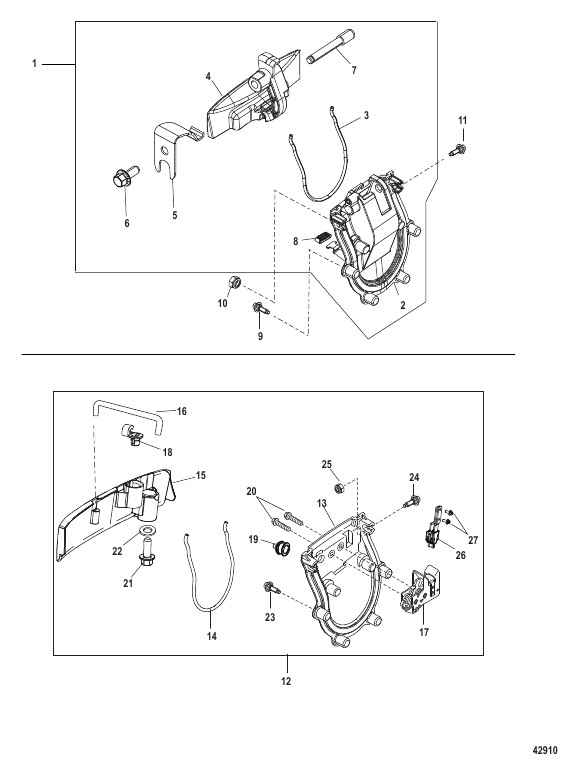

| # | Part Number | Description | Qty | Status |
|---|
| - |
896617A04 |
LATCH KIT Rear Design-II Up-Fit Kit Design-II
|
1 |
superseded
|
| 1 |
NSS |
NOT SOLD SEPARATE LATCH ASSEMBLY Design-I
|
1 |
|
| 10 |
401386 |
NUT (M6) Stainless Steel
|
4 |
|
| 11 |
8M0005773 |
SCREW (M6 x 14) Shoulder HEX FLG SS
|
2 |
|
| 12 |
879148T72 |
PANEL AND LATCH ASSEMBLY Design-II
|
1 |
|
| 13 |
8M0020855 |
PANEL Access
|
1 |
disc.
|
| 14 |
8M0026713 |
SEAL
|
1 |
disc.
|
| 15 |
8M0020856 |
HANDLE
|
1 |
superseded
|
| 16 |
8M0020854 |
LINK
|
1 |
|
| 17 |
8M0006056 |
LATCH ASSEMBLY Rear
|
1 |
superseded
|
| 18 |
8M0006054 |
RETAINER
|
1 |
|
| 19 |
8M0006060 |
SEAL
|
1 |
|
| 2 |
888448A03 |
PANEL ASSEMBLY Access
|
1 |
disc.
|
| 20 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
2 |
superseded
|
| 21 |
88552516 |
SCREW (M6 x 16 MM) Stainless Steel
|
1 |
superseded
|
| 22 |
69056 |
WASHER (.255 x .620 x .030) Stainless Steel
|
1 |
|
| 23 |
892073002 |
SHOULDER SCREW (M6)
|
6 |
superseded
|
| 24 |
8M0005773 |
SCREW (M6 x 14) Shoulder HEX FLG SS
|
2 |
|
| 25 |
401386 |
NUT (M6) Stainless Steel
|
2 |
|
| 26 |
8M0020857 |
STRIKER ASSEMBLY
|
1 |
|
| 27 |
82130014 |
SCREW (M6 x 14)
|
2 |
|
| 3 |
896927 |
SEAL
|
1 |
disc.
|
| 4 |
896928A01 |
LEVER ASSEMBLY Rail Latch
|
1 |
|
| 5 |
896933 |
SPRING Leaf
|
1 |
disc.
|
| 6 |
88552514 |
SCREW (M6 x 14 MM) Stainless Steel
|
1 |
|
| 7 |
896932 |
PIN Lever
|
1 |
disc.
|
| 8 |
898476 |
BUTTON Latch
|
1 |
disc.
|
| 9 |
892073002 |
SHOULDER SCREW (M6)
|
1 |
superseded
|
